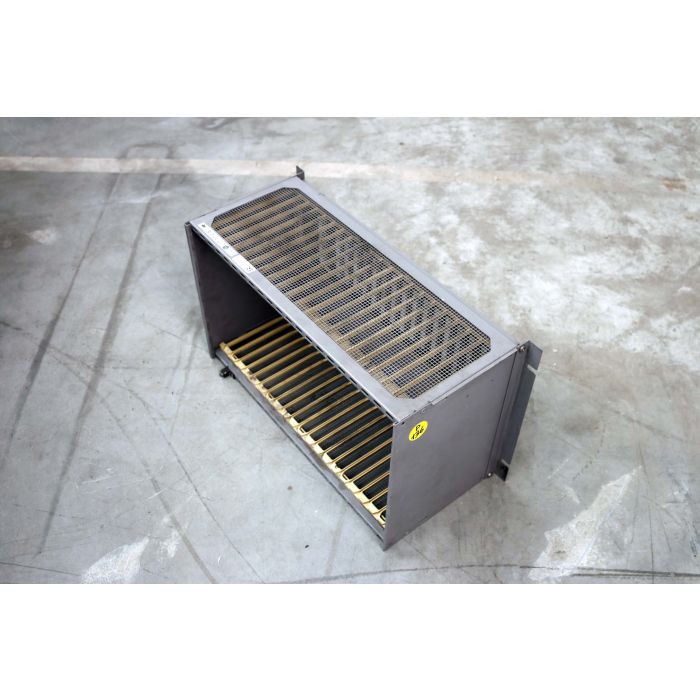

139427 (1)

TEXAS INSTRUMENTS 505-6516 RACK Used

TEXAS INSTRUMENTS 505-6516
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
TEXAS INSTRUMENTS
HAN:
505-6516 RACK
Condition:
Used
Logistics
Weight:
4.00kg
Country of Manufacture:
Taric-Code:
85389099

The Texas Instruments 505-6516 16-slot mounting rack is a robust backplane chassis for TI505/SIMATIC 505 PLC systems, engineered to host high-density I/O and control modules in industrial automation cabinets. It provides a stable mechanical platform and clean bus layout for reliable operation across production lines, utilities, and process plants, making it a dependable choice for OEMs and maintenance teams alike.

This passive backplane rack supports TI505/SIMATIC 505 CPUs, power supplies, and I/O modules across sixteen contiguous slots with keyed card-edge connectors that ensure correct alignment and secure engagement. The panel-mount chassis fits standard control enclosures and allows front-side service for fast module replacement, while an external 505-series power supply delivers backplane power to the rack. Designed with signal integrity and EMC-conscious layout in mind, it helps maintain deterministic PLC bus communication in demanding environments.

Whether you're expanding a legacy system or standardizing on proven hardware, this rack streamlines installation and lifecycle support, and it is supplied with a 1-year warranty to give your maintenance teams added assurance during commissioning and operation.

  • Brand: Texas Instruments
  • Series: TI505 / SIMATIC 505
  • Model: 505-6516
  • Rack type: 16-slot PLC mounting rack
  • Slot count: 16
  • Compatibility: TI505/SIMATIC 505 CPU, PSU, and I/O modules
  • Mounting: Panel mounting (control cabinet)
  • Connection type: Keyed card-edge backplane connectors
TEXAS INSTRUMENTS 505-6516 SIMATIC TI505 MOUNTING RACK FOR TI505 PLC 16 SLOT
