350387 (1)

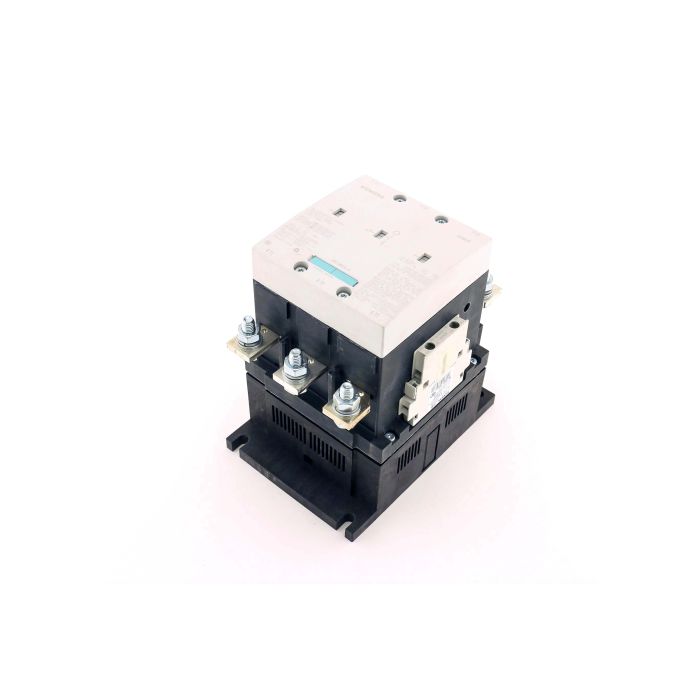

SIEMENS 3RT1265-6AP36 VACUUM CONTACTOR New

SIEMENS 3RT1265-6AP36
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SIEMENS
HAN:
3RT1265-6AP36
Condition:
New
Logistics
Weight:
7.30kg
Country of Manufacture:
Taric-Code:
85364900

The Siemens 3RT1265-6AP36 vacuum contactor is built for dependable motor switching in demanding AC-3 applications up to 265 A, providing robust performance for medium and large drives. It is a smart choice for OEMs, switchgear builders, and maintenance teams seeking compact, busbar-ready controlgear that supports high switching cycles with low wear.

Featuring a 3-pole architecture in S10 frame size, this contactor leverages vacuum-interruption technology to minimize contact erosion and ensure consistent switching behavior. It delivers AC-3 performance up to 132 kW at 400 V and provides a universal control voltage of 220–240 V UC for flexible integration. Two NO and two NC auxiliary contacts simplify interlocking and signaling, while the conventional drive and busbar connections streamline panel assembly and service.

Delivered ready for fast installation and supported by responsive technical expertise, the 3RT1265-6AP36 helps reduce downtime and standardize your motor control designs, with the assurance of a 1-year warranty to safeguard your investment in continuous industrial operation.

  • Brand: Siemens
  • Model: 3RT1265-6AP36
  • Type: Vacuum contactor, 3-pole
  • Utilization category: AC-3, 265 A
  • Motor rating (AC-3, 400 V): 132 kW
  • Control voltage (UC): 220–240 V
  • Auxiliary contacts: 2 NO + 2 NC
  • Connection type: Busbar connections
SIEMENS 3RT1265-6AP36 VACUUM CONTACTOR, AC-3 265 A, 132 KW / 400 V AC (50-60 HZ) / DC OPERATION 220-240 V UC AUXILIARY CONTACTS 2 NO + 2 NC 3-POLE, SIZE S10 BUSBAR CONNECTIONS DRIVE: CONVENTIONAL
