429191 (1)

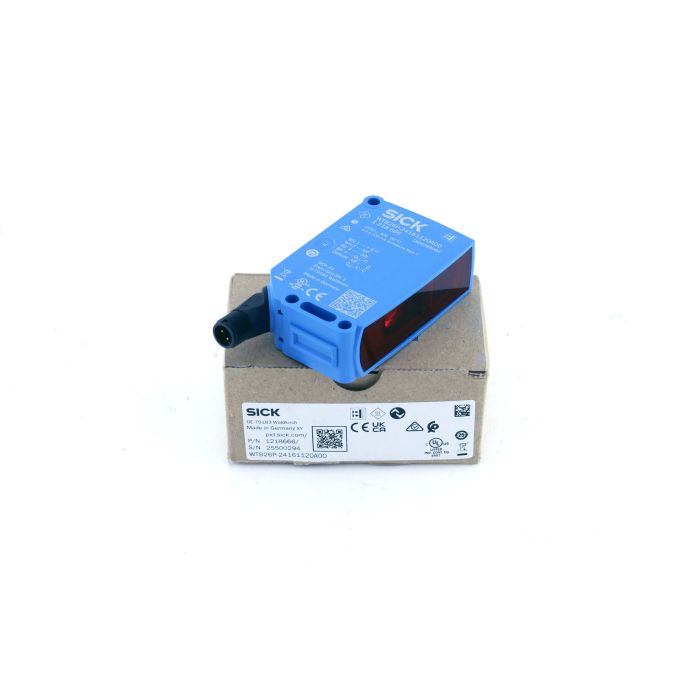

SICK WTB26P-24161120A00 ; 1218666 PHOTOELECTRIC PROXIMITY SENSOR New

SICK WTB26P-24161120A00 ; 1222286
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
WTB26P-24161120A00 ; 1218666
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The SICK WTB26P-24161120A00 photoelectric proximity sensor from the W26 series delivers reliable detection for industrial automation applications, ensuring precise object recognition even in challenging environments.

Equipped with background suppression technology, it offers a sensing range of 30 to 900 mm using a PinPoint LED with visible red light. The sensor features IO-Link V1.1 interface for efficient configuration, push-pull PNP/NPN outputs with light/dark switching, and a robust VISTAL® housing.

With its block-shaped design and superior environmental resistance, the WTB26P-24161120A00 excels in demanding production lines, providing consistent performance backed by a 1-year warranty for long-term reliability.

  • Brand: SICK
  • Series: W26
  • Model: WTB26P-24161120A00
  • Operating principle: Reflex with background suppression
  • Sensing range: 30 to 900 mm
  • Output type: Push-pull PNP/NPN
  • Connection type: M12, 4-pin
  • Protection rating: IP66/IP67/IP69
SICK WTB26P-24161120A00 ; 1222286 PHOTOELECTRIC PROXIMITY SENSOR, FUNCTIONAL PRINCIPLE DETAIL BACKGROUND SUPPRESSION, SENSING RANGE MIN. 30 MM, SENSING RANGE MAX. 500 MM, PRESET SWITCHING THRESHOLD 500 MM, REFERENCE OBJECT OBJECT WITH 90% REMISSION FACTOR (COMPLIES WITH STANDARD WHITE ACCORDING TO DIN 5033), LIGHT SOURCE PINPOINT LED, TYPE OF LIGHT VISIBLE RED LIGHT, SHAPE OF LIGHT SPOT POINT-SHAPED, LIGHT SPOT SIZE (DISTANCE) Ø 7 MM (700 MM), MAXIMUM DISPERSION OF THE EMITTED BEAM AROUND THE STANDARDIZED TRANSMISSION AXIS (SQUINT ANGLE), < +/- 1.0° (AT TU = +23 °C)
