heroicons/solid/check 10K Products in Stock
heroicons/solid/check Worldwide Delivery
heroicons/solid/check Order before 4 PM CET, shipped today
heroicons/solid/check New 12 months warranty
429038 (1)

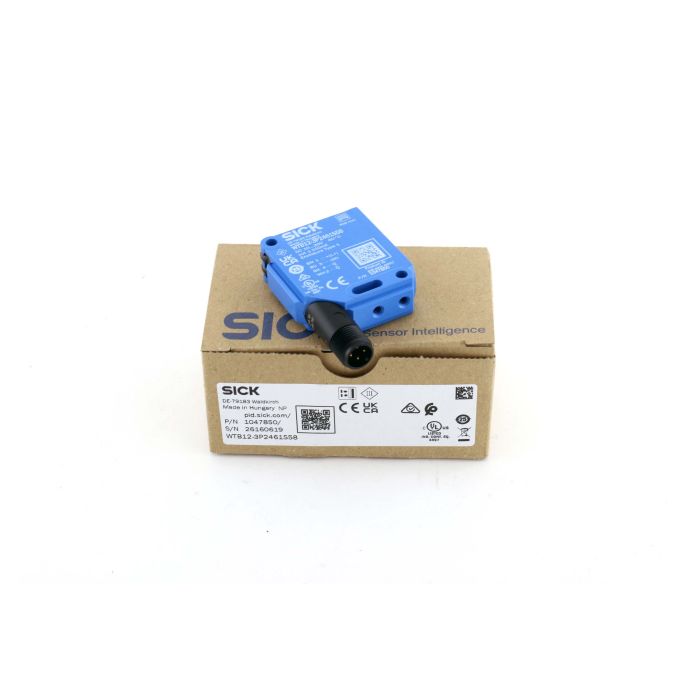

SICK WTB12-3P2461S58 ; 1047850 PHOTOELECTRIC PROXIMITY SENSOR New

SICK WTB12-3P2461S58 ; 1047850
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
WTB12-3P2461S58 ; 1047850
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The SICK WTB12-3P2461S58 photoelectric proximity sensor from the proven W12-3 platform delivers reliable object detection in demanding industrial environments. Its visible red PinPoint LED with a line-shaped spot enables precise alignment and stable detection of small edges, perforated materials, and glossy, irregular or foil-wrapped surfaces. A compact block-style metal housing and 4-pin M12 plug make it a robust, time-saving choice for machine builders and maintenance teams in packaging, intralogistics, and assembly.

Engineered with background suppression, the sensor provides consistent switching across a 50 to 500 mm working range, even in front of moving or reflective backgrounds. Fast response time of ≤700 µs and a 750 Hz switching frequency support high-throughput applications, while the PNP output with antivalent light/dark switching integrates seamlessly with modern PLC I/O. Fine-tuning is straightforward via the 5-turn potentiometer, and the IP66/IP67/IP69K design with a PMMA front lens withstands washdown, dust, and ambient temperatures from -40 to +60 °C.

Whether modernizing existing lines or specifying new equipment, this model combines detection accuracy with installation efficiency to minimize commissioning risk and downtime, and it is backed by a 1-year warranty to give procurement teams added assurance.

  • Brand: SICK
  • Series: W12-3
  • Model: WTB12-3P2461S58
  • Operating principle: Photoelectric proximity sensor with background suppression
  • Sensing range: 50 to 500 mm
  • Output type: PNP, light/dark switching (antivalent)
  • Protection rating: IP66, IP67, IP69K
  • Connection type: M12, 4-pin
SICK WTB12-3P2461S58 ; 1047850 PHOTOELECTRIC PROXIMITY SENSOR
