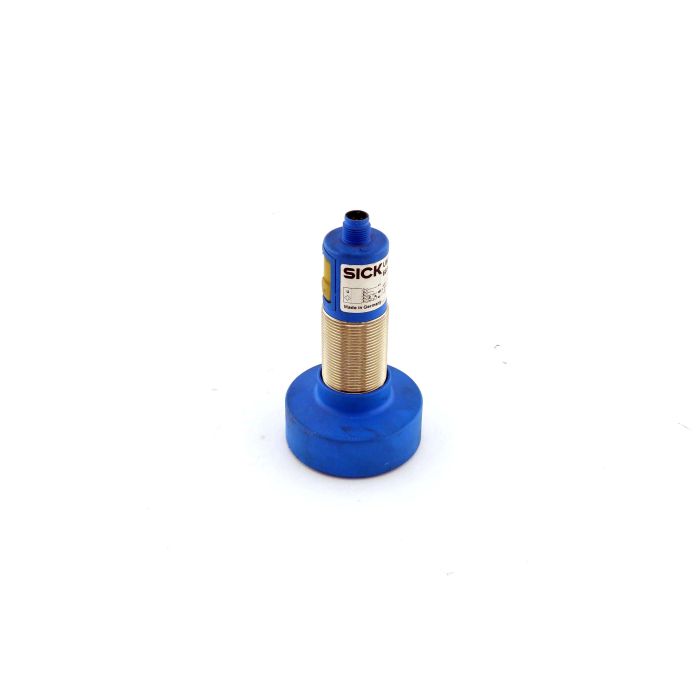

The SICK UM30-215118 ultrasonic distance sensor delivers reliable long-range detection from 0.6 to 6 m (limit up to 8 m) for level monitoring, conveyor positioning, and pallet or object detection. Built on the proven UM30 platform with a rugged M30 form factor and nickel-plated metal housing, it maintains stable performance on challenging targets and in dusty or humid environments.

With 12-bit resolution, ±0.15% repeatability, and ±1% measurement accuracy, the sensor combines a 1x PNP switching output with an auto-select analog output (4–20 mA or 0–10 V depending on load). Temperature compensation, adjustable operating modes (switch point/window/background), teach-in via multifunction input, and a clear LED display streamline commissioning. A fast 240 ms response, 80 kHz ultrasonic carrier, and synchronization of up to 50 sensors without mutual interference ensure dependable operation on crowded lines. IP65/IP67 protection and an M12 5-pin connector simplify integration in field installations.

This combination of range, configurability, and robustness helps reduce downtime and supports precise distance measurement in intralogistics, packaging, and process automation, and it is backed by a 1-year warranty to give procurement and maintenance teams added confidence.

• Brand: SICK
• Series: UM30
• Model: UM30-215118 (6036925)
• Sensing range: 0.6 to 6 m (limit up to 8 m)
• Outputs: 1x PNP switching; 4–20 mA / 0–10 V analog (auto-switching)
• Connection: M12, 5-pin
• Protection rating: IP65 / IP67
• Response time: 240 ms
