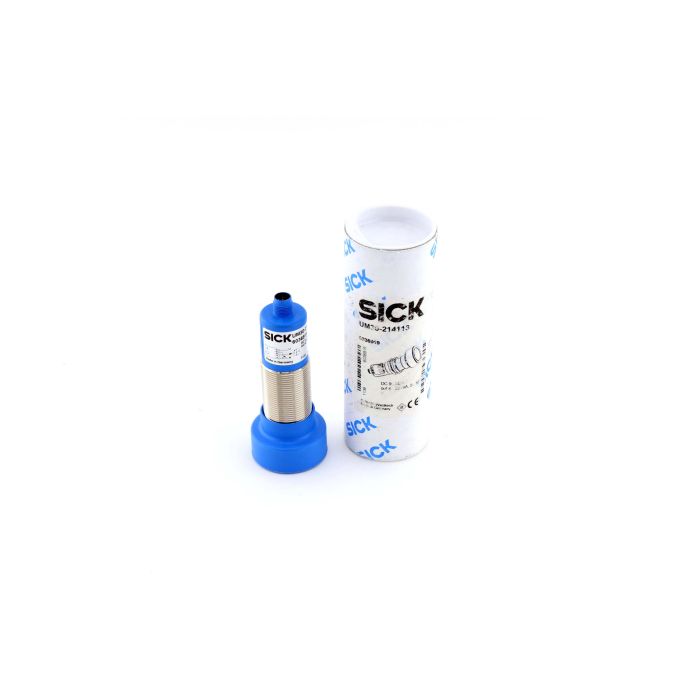

The SICK UM30-214113 ultrasonic distance sensor delivers long-range, non-contact measurement in a rugged M30 metal housing designed for tough industrial environments. With a working range of 350 mm to 3,400 mm and a limit up to 5,000 mm, it reliably detects natural targets for level monitoring, object positioning and material flow control. The analog interface automatically switches between 4–20 mA and 0–10 V depending on load, and the straight-beam design with an M12 5-pin plug streamlines installation.

Engineered for consistent results, the UM30 offers 12-bit resolution, ±0.15% repeatability and ±1% measurement accuracy with temperature compensation. A 180 ms response at a typical 120 kHz ultrasonic frequency ensures stable readings even in challenging conditions, while synchronization of up to 50 sensors with multiplexing prevents mutual interference. Teach-in, a parameterizable analog output and configurable filters (measurement value filtering, foreground suppression, detection range and sensitivity), combined with IP65/IP67 protection and −25 °C to +70 °C operation, deliver robust process reliability.

Commissioning is efficient thanks to the deactivatable display and factory reset options, and the sensor’s dependable performance helps reduce downtime; this industrial-grade solution is backed by SICK quality and includes a 1-year warranty to give you added assurance throughout the life of your project.

• Brand: SICK
• Series: UM30
• Model: UM30-214113
• Sensing range: 350 mm to 3,400 mm (limit 5,000 mm)
• Output signals: 4 mA to 20 mA; 0 V to 10 V
• Response time: 180 ms
• Protection rating: IP65/IP67
• Connection type: M12 5-pin plug
