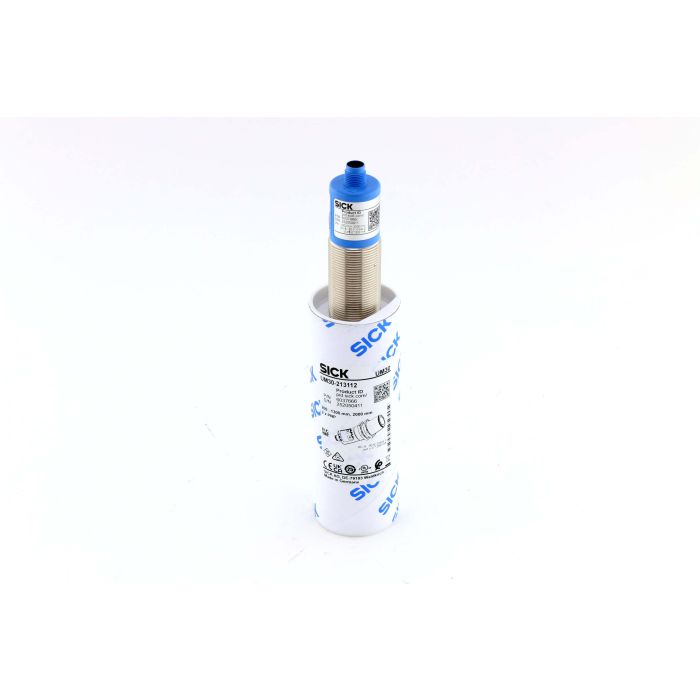

The SICK UM30-213112 ultrasonic distance sensor delivers reliable, high-precision measurement for demanding industrial automation tasks, from level control and presence detection to positioning on conveyors and packaging lines. Its robust M30 metal housing and straight sound beam make it a versatile choice for OEMs and system integrators looking to standardize on a proven ultrasonic platform.

Operating from 200 to 1,300 mm with a 2,000 mm limit, the UM30 provides fast updates with 92 ms response time, typical 200 kHz ultrasonic frequency, and excellent repeatability (±0.15%) with accuracy up to ±1%. Two PNP switching outputs, a multifunction input for teach-in, selectable operating modes, and advanced filtering ensure stable detection on challenging surfaces. Temperature compensation, LED display, and IP65/IP67 ingress protection support dependable performance in -25 to +70 °C environments.

With an industry-standard M12 5-pin connector and straightforward commissioning, the UM30 integrates seamlessly into PLC-controlled systems to reduce setup time and improve machine availability, and it is supplied with a 1-year warranty to safeguard your investment.

• Brand: SICK
• Series: UM30
• Model: UM30-213112
• Sensing range: 200 mm to 1,300 mm (operating), up to 2,000 mm (limit)
• Output type: 2 x PNP switching outputs
• Response time: 92 ms
• Protection rating: IP65/IP67
• Connection type: M12, 5-pin plug
