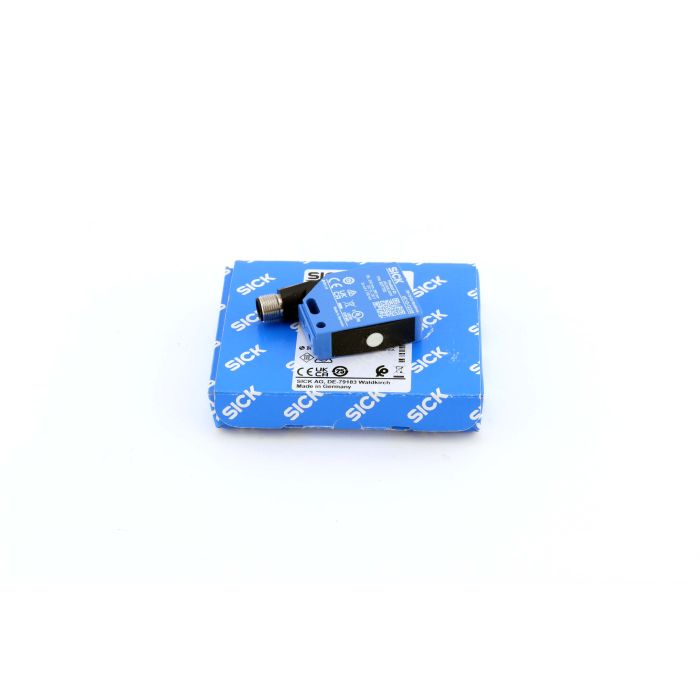

428239 (1)

SICK UC12-1223E ; 6077703 ULTRASONIC PROXIMITY SENSOR New

SICK UC12-1223E ; 6077703
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
UC12-1223E ; 6077703
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The SICK UC12-1223E ultrasonic proximity sensor delivers reliable short-range distance measurement for machine builders and OEMs who need compact sensing with consistent results. With a rugged zinc die-cast housing in a slim block form and a straight sound emission, it integrates cleanly in space-constrained setups across conveying, packaging and intralogistics applications, while the M12 connector speeds installation and changeover.

Equipped with IO-Link V1.1 for parameterization, diagnostics and rapid device replacement, the sensor provides two configurable push-pull digital outputs that support PNP and NPN logic, including antivalent switching. Temperature compensation, a typical ultrasonic frequency of 500 kHz, a fast 30 ms response and a 25 Hz switching frequency underpin stable detection on natural objects, while a resolution of ≥ 0.1 mm, repeatability of ±0.15% and accuracy of ±1% help ensure precise switching windows. Dual IP65/IP67 protection and an operating temperature range of -25 to +70 °C enable dependable operation in demanding industrial environments.

Whether used for presence detection, level monitoring or double-sheet control, the UC12-1223E reduces commissioning time with teach-in and supports predictive maintenance through IO-Link diagnostics, delivering dependable performance over its service life and protecting your investment with a 1-year warranty.

  • Brand: SICK
  • Series: UC12
  • Model: UC12-1223E
  • Sensing range: 55 to 250 mm (limit 350 mm)
  • Output type: 2x push-pull PNP/NPN
  • Communication: IO-Link V1.1
  • Protection rating: IP65/IP67
  • Connection type: M12 4-pin plug
SICK UC12-1223E ; 6077703 ULTRASONIC PROXIMITY SENSOR
