426105 (1)

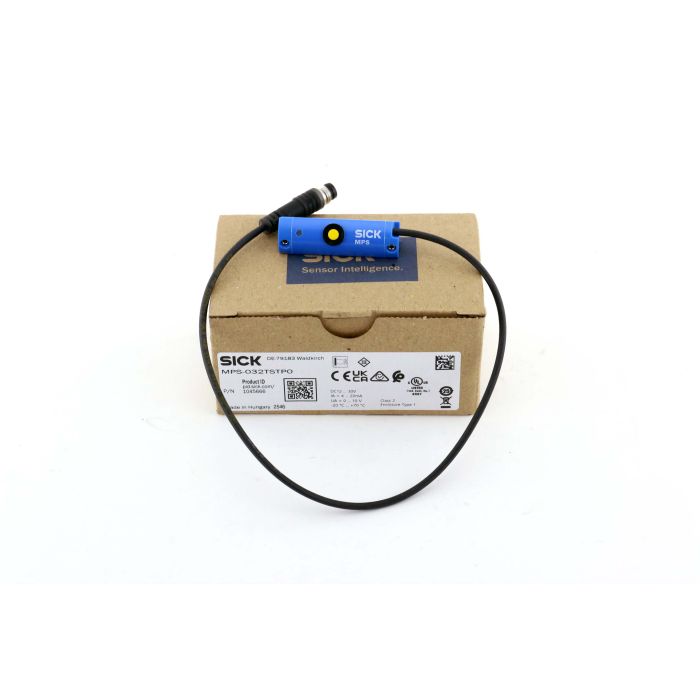

SICK MPS-032TSTP0 ; 1045666 MAGNETIC POSITIONING SENSOR New

SICK MPS-032TSTP0 ; 1045666
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
MPS-032TSTP0 ; 1045666
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
EAN:
4047084264702
Taric-Code:
85389091

The SICK MPS-032TSTP0 magnetic positioning sensor from the MPS-T series is designed for precise, continuous piston position detection in pneumatic cylinders. Its T-slot housing and compact design make it a reliable choice for automation, machine building and industrial motion control applications where accurate cylinder feedback is essential.

This analogue cylinder sensor provides both 0 to 10 V voltage output and 4 to 20 mA current output, enabling flexible integration into PLC and control systems. With a 32 mm measuring range, 15 to 30 V DC supply voltage, IP67 protection and an M8 4-pin connector with 0.3 m cable, it is well suited for demanding industrial environments.

Thanks to teach-in functionality, short response time and robust protection against reverse polarity and short circuits, the MPS-032TSTP0 supports efficient commissioning and dependable operation, and it is supplied with a 1-year warranty for added purchasing confidence.

  • Brand: SICK
  • Series: MPS-T
  • Model: MPS-032TSTP0
  • Output type: Analogue 0 to 10 V and 4 to 20 mA
  • Sensing range: 32 mm
  • Supply voltage: 15 to 30 V DC
  • Protection rating: IP67
  • Connection type: 0.3 m cable with M8 4-pin connector
SICK MPS-032TSTP0 ; 1045666 MAGNETIC POSITIONING SENSOR MPS
