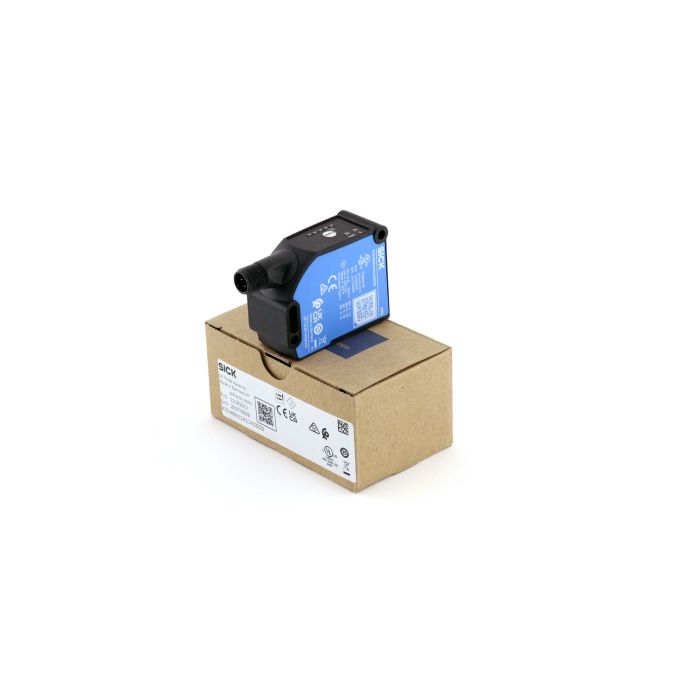

The SICK KTS-WB41141142ZZZZ contrast sensor is designed for reliable mark detection in demanding industrial automation environments. As part of the SICK KTS series, this sensor is well suited for packaging lines, printing machinery and high-speed material handling systems where precise contrast detection supports stable process control.

Equipped with an RGB LED light source, Easy Teach operation and 2-point teach-in, the sensor enables fast commissioning and accurate adaptation to different surface colors and print marks. The push-pull PNP/NPN switching output, 25 kHz switching frequency and 20 µs response time make it suitable for dynamic applications, while the M12 4-pin connector and IP67 protection rating support robust integration in electrical control systems.

For machine builders, maintenance teams and system integrators seeking a compact contrast sensor with dependable performance, the SICK KTS-WB41141142ZZZZ offers a practical and efficient solution, supplied with the assurance of a 1-year warranty.

• Brand: SICK
• Series: KTS
• Model: KTS-WB41141142ZZZZ
• Output type: Push-pull PNP/NPN
• Sensing range: up to 13 mm
• Supply voltage: 10.8 to 28.8 V DC
• Protection rating: IP67
• Connection type: M12 plug, 4-pin
