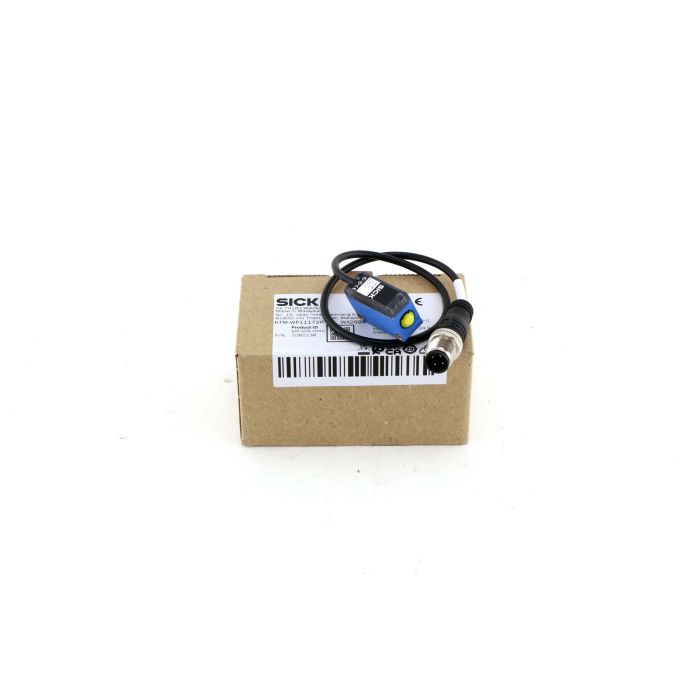

429312 (1)

SICK KTM-WP11172P ; 1082138 CONTRAST SENSOR New

SICK KTM-WP11172P ; 1082138
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
KTM-WP11172P ; 1082138
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
EAN:
4047084384042
Taric-Code:
85389091

The SICK KTM-WP11172P contrast sensor is designed for precise mark detection in packaging machines, printing equipment and automated production lines. As part of the compact KTM series, this sensor offers reliable contrast detection in tight installation spaces and supports stable process control for high-speed industrial applications.

The sensor uses an RGB LED light source with wavelengths of 470 nm, 525 nm and 625 nm, combined with a vertical light spot of 1.6 mm x 9.5 mm and a sensing distance of up to 12.5 mm. Its PNP switching output, 15 kHz switching frequency, 32 µs response time and teach-in button with static and dynamic 2-point teach-in enable fast setup and dependable mark recognition on a wide range of materials.

With an IP67-rated ABS housing, M12 4-pin connector cable and 12 to 24 V DC supply voltage, the KTM-WP11172P is a robust choice for OEMs, maintenance teams and system integrators looking for a compact industrial contrast sensor with dependable performance and a 1-year warranty.

  • Brand: SICK
  • Series: KTM
  • Model: KTM-WP11172P
  • Output type: PNP
  • Sensing range: ≤ 12.5 mm
  • Supply voltage: 12 V DC to 24 V DC
  • Protection rating: IP67
  • Connection type: 0.2 m cable with M12, 4-pin connector
SICK KTM-WP11172P ; 1082138 CONTRAST SENSOR, HOUSING DESIGN SMALL, DIMENSIONS (W X H X D) 12 MM X 31.5 MM X 21 MM, LIGHT SOURCE LED, RGB, LIGHT EMISSION LONG SIDE OF HOUSING, LIGHT SPOT SIZE 1.6 MM X 9.5 MM, LIGHT SPOT DIRECTION VERTICAL, RECEIVING FILTERS NONE, WAVE LENGTH 470 NM, 525 NM, 625 NM, SENSING DISTANCE ? 12.5 MM, SENSING DISTANCE TOLERANCE ± 3 MM, DISPLAY LED INDICATOR GREEN: POWER ON, LED INDICATOR, YELLOW: STATUS SWITCHING OUTPUT Q, ADJUSTMENT TEACH-IN BUTTON, TEACH-IN MODE 2-POINT TEACH-IN STATIC/DYNAMIC + PROXIMITY TO MARK, ET: TEACH-IN STATIC
