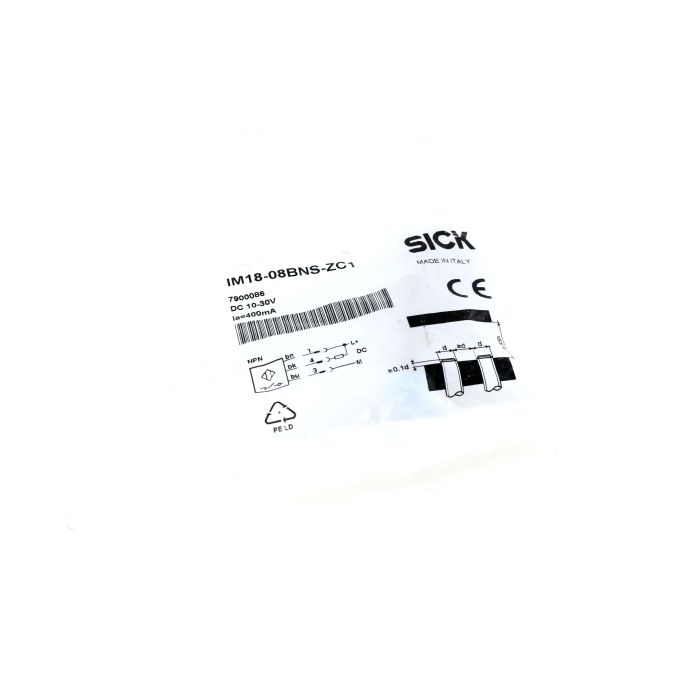

SICK IM18-08BNS-ZC1 ; 7900086 INDUCTIVE PROXIMITY SENSOR New

SICK IM18-08BNS-ZC1 ; 7900086
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
IM18-08BNS-ZC1 ; 7900086
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The SICK IM18-08BNS-ZC1 inductive proximity sensor delivers dependable metal detection for industrial automation and machine building. In a robust M18 standard housing made from nickel‑plated brass, it supports flush mounting and provides a precise 8 mm sensing distance for compact fixtures and tight installation spaces.

Engineered for fast, noise-resistant switching, this DC 3-wire device features an NPN normally open output up to 300 Hz, a wide 10–30 V DC supply range, and IP67 sealing for reliable operation in wet and dusty areas. The M12 4-pin male connector accelerates installation and replacement, while compliance with EN 60947-5-2 EMC, short-circuit protection, start-up suppression, and a –25 to +70 °C operating range ensure stable performance and long service life.

Ideal for machine builders and maintenance teams standardizing on M18 sensors, the IM18-08BNS-ZC1 helps reduce downtime and simplify integration, and it comes with a 1-year warranty to support your uptime commitments.

  • Brand: SICK
  • Model: IM18-08BNS-ZC1
  • Sensing range: 8 mm (Sn)
  • Mounting type: Flush
  • Output: NPN, NO (DC 3-wire)
  • Supply voltage: 10 to 30 V DC
  • Protection rating: IP67
  • Connection type: M12, 4-pin male
SICK IM18-08BNS-ZC1 ; 7900086 INDUCTIVE PROXIMITY SENSOR, SENSING RANGE SN 8 MM, INSTALLATION TYPE FLUSH, HOUSING STANDARD, ELECTRICAL WIRING DC 3-WIRE, SWITCHING OUTPUT NPN, OUTPUT FUNCTION NO, CONNECTION TYPE MALE CONNECTOR M12, 4-PIN
