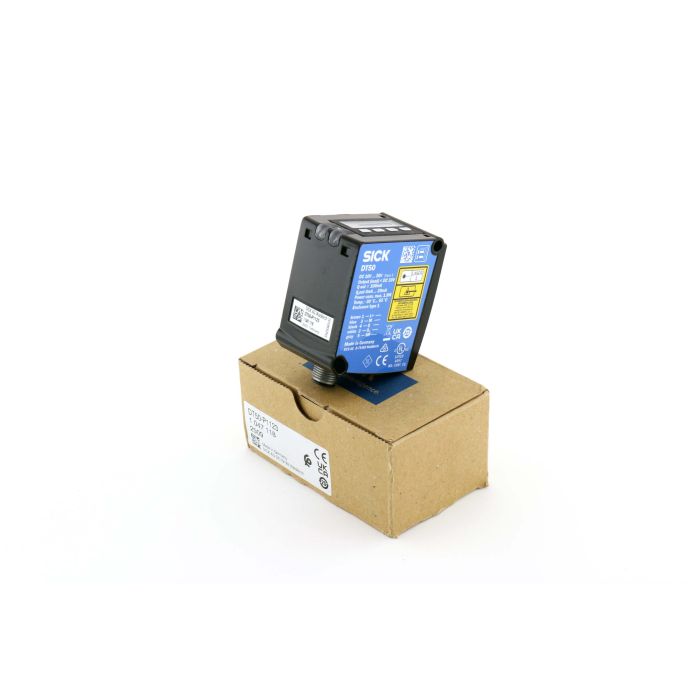

The SICK DT50-P1123 laser distance sensor from the Dx50 series delivers long-range, reliable distance measurement for material handling, packaging, and general machine automation. Its compact zinc die-cast housing with clear display and teach functions streamlines setup on conveyors, lifts, and positioning stations.

Using a visible red Class 1 laser, the DT50-P1123 measures natural targets across 200 mm to 10,000 mm depending on reflectivity (up to 10 m at 90% remission, 5 m at 18%, 2.5 m at 6%). It provides one PNP switching output and a scalable 4-20 mA current output (≤300 Ω), with 16-bit resolution, ±10 mm accuracy, and repeatability from 2.5 mm. Fast response of 20-30 ms supports dynamic applications, while IP65 protection and an M12 5-pin connector ensure robust integration.

Engineers benefit from teach-in, adjustable hysteresis, and a multifunction input for laser off or external teach to reduce commissioning effort and downtime, and to add peace of mind in demanding industrial environments this sensor is supplied with a 1-year warranty.

• Brand: SICK
• Series: Dx50
• Model: DT50-P1123
• Sensing range: 200 mm to 10,000 mm (90%); 200 mm to 5,000 mm (18%); 200 mm to 2,500 mm (6%)
• Analog output: 4 to 20 mA (≤ 300 Ω)
• Digital output: 1 x PNP
• Protection rating: IP65
• Connection type: M12, 5-pin
