427746 (1)

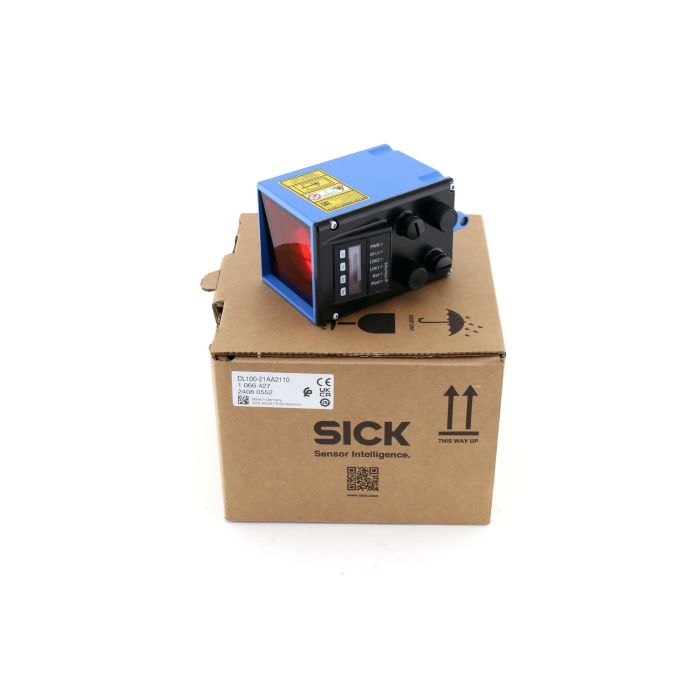

SICK DL100-21AA2110 ; 1066427 LASER DISTANCE SENSOR New

SICK DL100-21AA2110 ; 1066427
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
DL100-21AA2110 ; 1066427
Condition:
New
Logistics
Weight:
1.00kg
Country of Manufacture:
Taric-Code:
85389091

The SICK DL100-21AA2110 laser distance sensor from the Dx100 family delivers long-range, high-precision distance measurement for indoor industrial automation. Covering distances from 0.15 to 100 m on Diamond Grade reflector film with typical accuracy of ±2 mm and 0.5 mm repeatability, it is ideal for positioning, level monitoring, and long-travel detection on cranes, conveyors, and intralogistics equipment. A rugged die-cast aluminum housing with IP65 ingress protection ensures dependable performance in demanding environments.

Operating at 24 V DC, the device uses a visible red Class 2 laser and achieves a 1 ms measurement cycle with 2 ms response time. Two push-pull PNP/NPN switching outputs and an EtherNet/IP interface streamline integration with PLC and SCADA networks, while the SPEEDCON-compatible M12 connector and on-device dot-matrix display simplify commissioning and diagnostics. EMC-compliant design and specified low temperature and pressure influences support stable readings even under strong ambient light up to 100,000 lx.

From fast conveyor triggering to precise reflector-based range measurement, the DL100-21AA2110 helps reduce installation time and total cost of ownership, and it further safeguards your project with a 1-year warranty included as standard.

  • Brand: SICK
  • Series: Dx100
  • Model: DL100-21AA2110
  • Sensing range: 0.15 to 100 m (with Diamond Grade reflector)
  • Interface: EtherNet/IP
  • Output type: 2x push-pull (PNP/NPN)
  • Supply voltage: 24 V DC
  • Connection type: M12 connector, SPEEDCON-compatible
SICK DL100-21AA2110 ; 1066427 LASER DISTANCE SENSOR, 0.15 M ... 100 M, ON “DIAMOND GRADE” REFLECTIVE TAPE
