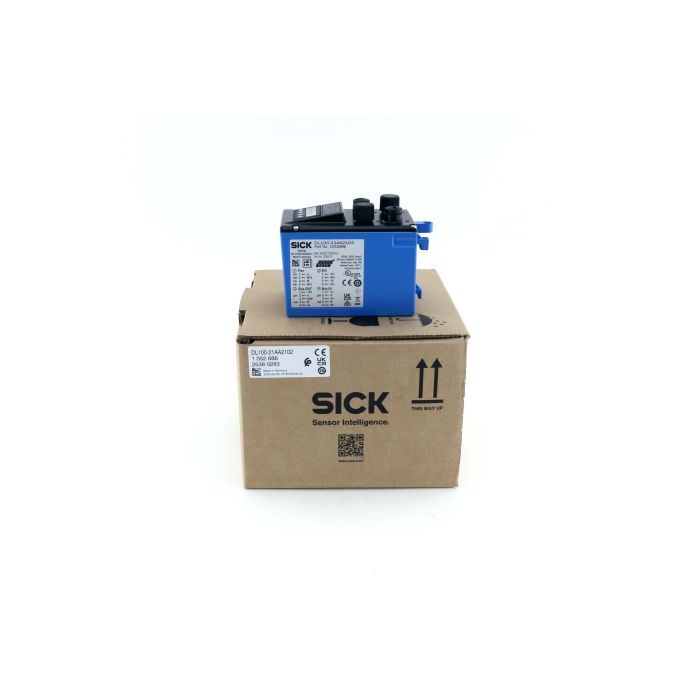

427730 (1)

SICK DL100-21AA2102 ; 1052686 LASER DISTANCE SENSOR New

SICK DL100-21AA2102 ; 1052686
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
SICK
HAN:
DL100-21AA2102 ; 1052686
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
EAN:
4047084226625
Taric-Code:
85389091

The SICK DL100-21AA2102 laser distance sensor from the Dx100 series is designed for precise long-range positioning and distance measurement in industrial automation. With a measuring range from 0.15 m to 100 m on Diamond Grade reflective tape, this PROFIBUS DP distance sensor is well suited for storage and conveyor systems, cranes, shuttles, and other indoor applications where reliable position feedback is essential.

The sensor uses visible red laser light with laser class 2 performance and delivers high measurement accuracy, fast response times, and stable repeatability for dynamic motion control. Two push-pull PNP/NPN digital outputs, one multifunction input, and a SPEEDCON-compatible M12 connector support efficient integration into control cabinets, machinery, and fieldbus-based automation environments.

For B2B maintenance, machine building, and retrofit projects, the DL100-21AA2102 offers a robust IP65 metal housing, clear status indication, and dependable measurement performance, while your purchase is supported by a 1-year warranty for added operational confidence.

  • Brand: SICK
  • Series: Dx100
  • Model: DL100-21AA2102
  • Communication interface: PROFIBUS DP
  • Sensing range: 0.15 m to 100 m on Diamond Grade reflective tape
  • Output type: 2 x push-pull PNP/NPN
  • Response time: 2 ms
  • Connection type: M12 plug, SPEEDCON-compatible
SICK DL100-21AA2102 ; 1052686 LASER DISTANCE SENSOR, 0.15 M ... 100 M, ON “DIAMOND GRADE” REFLECTIVE TAPE
