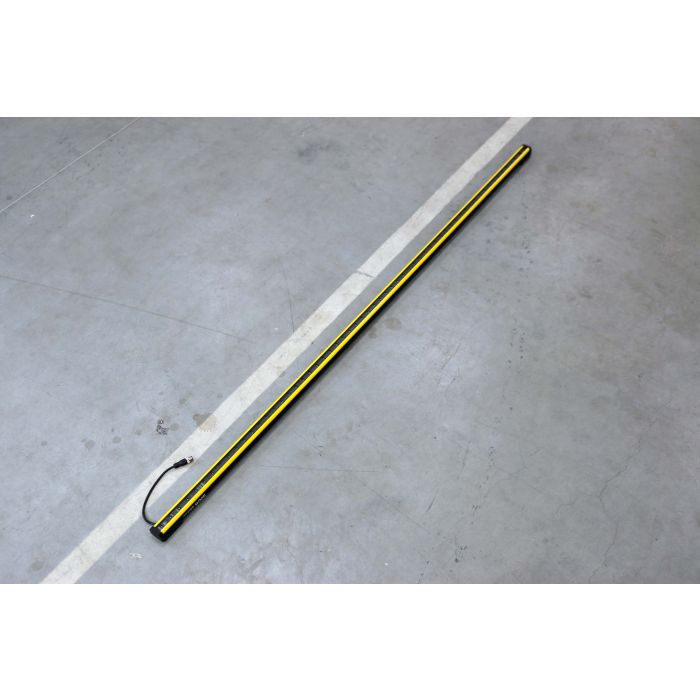

Engineered for dependable machine guarding in demanding industrial environments, the SICK deTec4 Core safety light curtain receiver C4C-EA15030A10000 combines high safety performance with straightforward integration. Its 30 mm resolution supports hand protection and access safeguarding, while a robust aluminum profile and IP65/IP67 sealing ensure reliable operation on the factory floor. With optical synchronization, no dead zones and clear status LEDs, it simplifies alignment and reduces downtime during commissioning and maintenance.

Certified to Type 4 (IEC 61496-1), PL e (ISO 13849-1) and SIL 3 (IEC 61508), this receiver delivers fast 13 ms response to minimize stopping distances. A 1,500 mm protective field height and up to 15 m sensing range cover a broad set of guarding applications, from assembly cells to packaging lines. Two PNP OSSD safety outputs with cross-circuit monitoring drive safety relays or safety PLC inputs; in the event of a fault, at least one OSSD safely switches OFF. An M12 5-pin system connection and a wide ambient temperature range (–30 to +55 °C) support flexible, standards-compliant installation.

Ideal for OEMs, machine builders and system integrators, the deTec4 Core receiver includes a matching test rod and comprehensive documentation to speed validation, and—backed by a 1-year warranty—helps secure long-term, low-risk operation in safety-critical environments.

• Brand: SICK
• Series: deTec4 Core
• Model: C4C-EA15030A10000
• Safety level: PL e, SIL 3, Type 4
• Resolution: 30 mm
• Protective field height: 1,500 mm
• Sensing range: up to 15 m
• Connection type: M12, 5-pin
