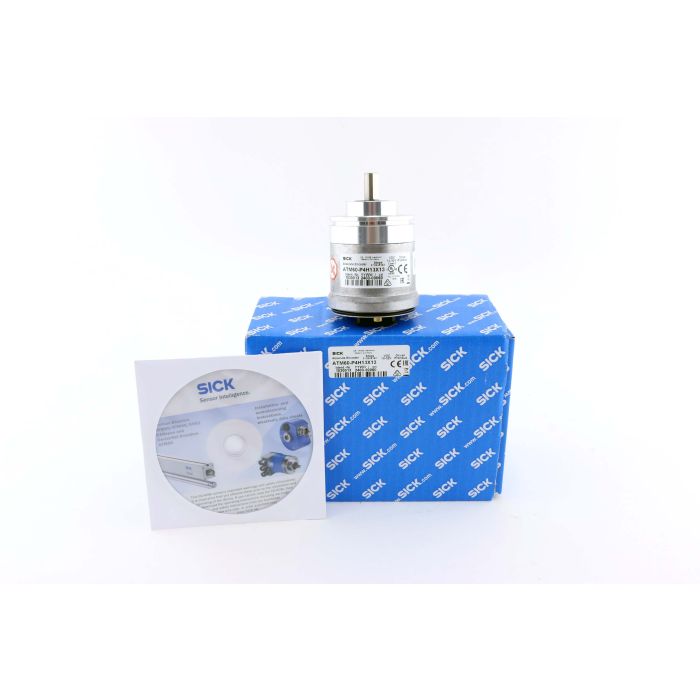

The SICK ATM60-P4H13X13 is a robust absolute multiturn encoder designed for precise position feedback in industrial automation, motion control, conveyor systems and machine building applications. As part of the proven ATM60 series, this encoder supports reliable position measurement where high resolution, repeatability and fieldbus integration are essential.

This model provides a maximum resolution of 13 bit x 13 bit, equal to 8,192 steps per revolution across 8,192 revolutions, with PROFIBUS DP communication and DPV0 functionality. The solid shaft with 10 mm clamping flange, bus-adapter connection, programmable interface and 10 to 32 V supply voltage make it suitable for demanding electrical and control cabinet installations.

With stainless steel shaft construction, EMC compliance and a high protection rating when used with shaft sealing, the ATM60-P4H13X13 is a dependable choice for professional retrofit, replacement and new-build projects, supplied with the assurance of a 1-year warranty.

• Brand: SICK
• Series: ATM60
• Model: ATM60-P4H13X13
• Encoder type: Absolute multiturn
• Resolution: 13 bit x 13 bit
• Communication interface: PROFIBUS DP, DPV0
• Supply voltage: 10 to 32 V
• Connection type: Bus adapter
