PILZ 774730 ; PNOZ X4 24VDC 3N/O 1N/C SAFETY RELAY New

PILZ 774730 ; PNOZ X4 24VDC 3N/O 1N/C
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PILZ
HAN:
774730 ; PNOZ X4 24VDC 3N/O 1N/C
Condition:
New
Logistics
Weight:
0.30kg
Country of Manufacture:
Taric-Code:
85364900

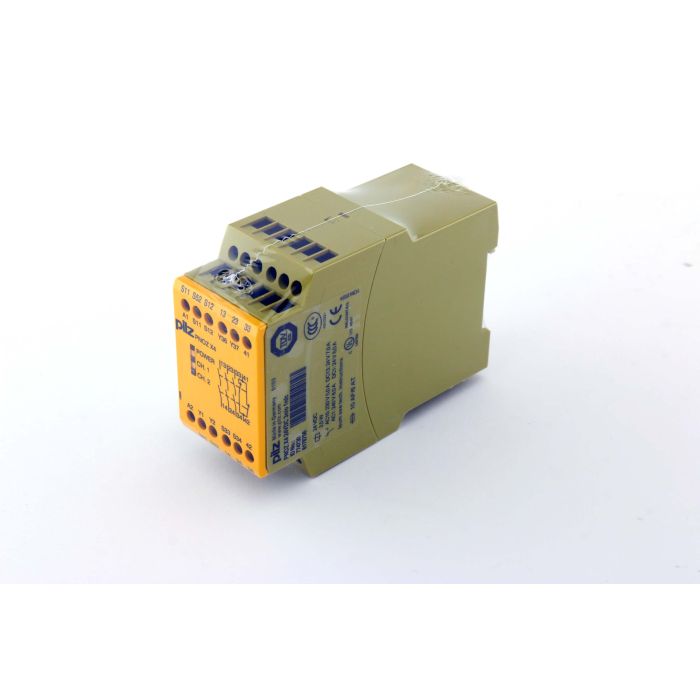

The Pilz PNOZ X4 safety relay (model 774730) provides reliable emergency stop and guard monitoring in compact control panels. With a 24 V DC supply and a 45 mm housing width, this standalone module helps machine builders and maintenance teams implement proven safety functions with minimal wiring effort.

Designed for flexibility on the shop floor, the PNOZ X4 supports 1- or 2-channel circuits with or without cross-short detection, enabling correct integration of E-STOPs and safety gate switches. Automatic, manual, and monitored start modes simplify adaptation to different risk assessments, while robust relay outputs (3 N/O, 1 N/C) and integrated screw terminals facilitate fast, secure installation in new builds or retrofits.

Choose the PNOZ X4 to streamline safety architecture, ensure consistent stop performance, and reduce commissioning time; it is an efficient choice for industrial automation projects and comes with a 1-year warranty to support dependable operation throughout the first year in service.

  • Brand: Pilz
  • Series: PNOZ X
  • Model: PNOZ X4 (774730)
  • Outputs: 3 N/O, 1 N/C relay contacts
  • Inputs: 1- or 2-channel, with/without cross-short detection
  • Supply voltage: 24 V DC
  • Connection type: Screw terminals
  • Housing width: 45 mm
PILZ 774730 ; PNOZ X4 24VDC 3N/O 1N/C SAFETY RELAY, (STANDALONE), INPUTS: 1/2-CHANNEL WIRING WITH/WITHOUT DETECTION OF SHORTS ACROSS CONTACTS, OUTPUTS: 3 N/O, 1 N/C, AUTOMATIC/MANUAL/MONITORED START, UB 24 V DC, WIDTH: 45 MM, SCREW TERMINALS INTEGRATED, MONITORING OF E-STOP, SAFETY GATES.
