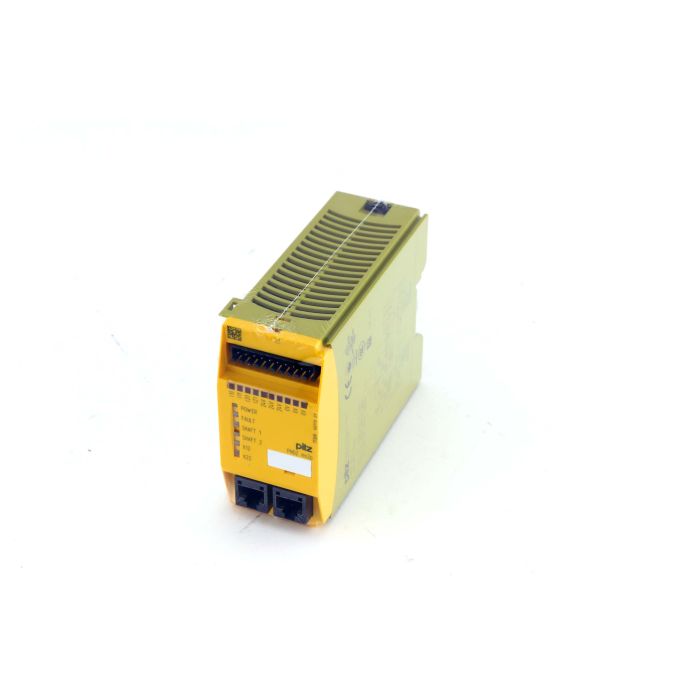

PILZ 773810 ; PNOZ MS2P EXPANSION MODULE New

PILZ 773810 ; PNOZ MS2P
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PILZ
HAN:
773810 ; PNOZ MS2P
Condition:
New
Logistics
Weight:
0.30kg
Country of Manufacture:
Taric-Code:
85389091

Engineered for safety-critical motion control, the Pilz PNOZ MS2P expansion module for the PNOZmulti Classic platform provides fail-safe monitoring of two axes. It integrates seamlessly into existing safety architectures, enabling precise speed and standstill supervision for drives in packaging machinery, intralogistics and machine tools while maintaining high plant availability.

The module accepts two incremental encoders via differential inputs and supports SIN/COS, TTL (RS-422) and HTL (24 V) signal formats for flexible integration across diverse drive systems. Four PNP proximity switch inputs provide auxiliary reference or enable signals, and an 8-pin RJ45 female connector simplifies fast, service-friendly wiring; an adapter cable is available as an accessory. Configuration in the PNOZmulti software enables parameterizable monitoring logic and safe shutdown for deterministic reaction to overspeed or standstill conditions.

With robust design, clear diagnostics and full compatibility with Pilz PNOZmulti Classic, this expansion module helps reduce engineering time and lifecycle costs, supporting reliable operation in industrial environments and providing added peace of mind with a 1-year warranty.

  • Brand: Pilz
  • Series: PNOZmulti Classic
  • Model: 773810 / PNOZ MS2P
  • Axes monitored: 2
  • Encoder interfaces: SIN/COS, TTL (RS-422), HTL (24 V)
  • Input type: Differential inputs for incremental encoders
  • Auxiliary inputs: 4 x PNP proximity switches
  • Connection: RJ45 female, 8-pin
PILZ 773810 ; PNOZ MS2P PNOZMULTI CLASSIC, EXPANSION MODULE, FAILSAFE, MOTION MONITORING OF 2 AXES, 2 INCREMENTAL ENCODERS, DIFFERENTIAL INPUT, SIN/COS, TTL(RS422), HTL (24 V), RJ45 FEMALE CONNECTOR, 8-PIN, ADAPTER CABLE AS AN ACCESSORY, 4 PROXIMITY SWITCHES, TYPE PNP.
