429770 (1)

PILZ 772002 ; PNOZ MM0.2P BASE UNIT Used

PILZ 772002 ; PNOZ MM0.2P
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PILZ
HAN:
772002 ; PNOZ MM0.2P
Condition:
Used
Logistics
Weight:
0.30kg
Country of Manufacture:
Taric-Code:
85389091

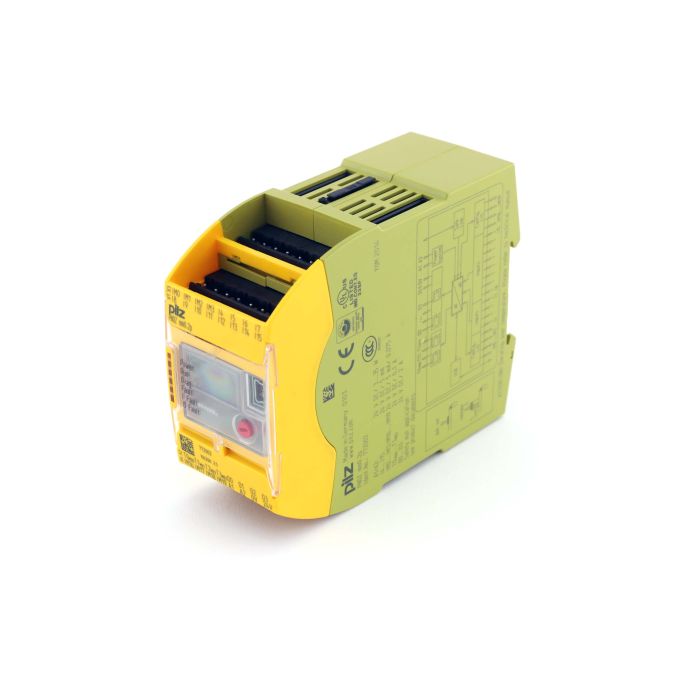

The Pilz PNOZ mm0.2p base unit (part no. 772002) from the PNOZmulti Mini series delivers reliable, configurable machine safety in a remarkably compact footprint. Designed for modern control panels, it centralizes key safety functions and supports flexible safety concepts across a wide range of machinery.

As a scalable safety controller, the PNOZ mm0.2p serves as the core of a PNOZmulti Mini system. It operates on 24 V DC, mounts on DIN rail, and is suited for cabinet environments with IP20 protection. Configuration is handled via the PNOZmulti Configurator, enabling rapid project setup, logic changes, and clear diagnostics, while the modular architecture allows seamless connection of matching expansion modules for application-specific I/O.

Whether for new builds or retrofit projects, this base unit streamlines safety compliance and reduces engineering time, helping OEMs and maintenance teams achieve robust machine safety with minimal panel space—further supported by a 1-year warranty to keep your project protected from day one.

  • Brand: Pilz
  • Series: PNOZmulti Mini
  • Model: PNOZ mm0.2p base unit
  • Part number: 772002
  • Supply voltage: 24 V DC
  • Mounting: DIN rail (EN 60715)
  • Protection rating: IP20
  • Configuration: PNOZmulti Configurator
PILZ 772002 ; PNOZ MM0.2P BASE UNIT
