412555 (1)

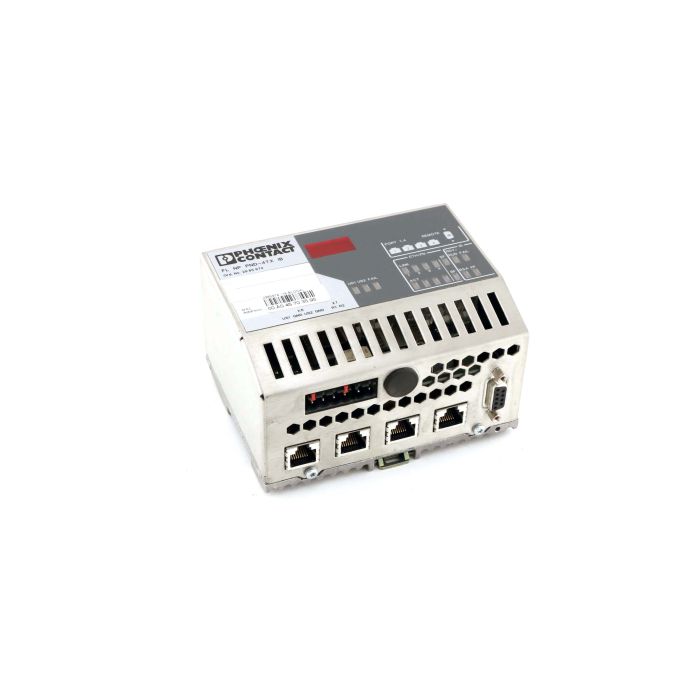

PHOENIX CONTACT 2985974 ; FL NP PND-4TX IB PROXY FOR PROFINET-RT-IRT Used

PHOENIX CONTACT 2985974 ; FL NP PND-4TX IB
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2985974 ; FL NP PND-4TX IB
Condition:
Used
Logistics
Weight:
0.60kg
Country of Manufacture:
Taric-Code:
85389091

The Phoenix Contact FL NP PND-4TX IB is a compact industrial gateway that acts as a PROFINET RT proxy with an integrated INTERBUS interface and a 4-port switch, making it ideal for connecting existing INTERBUS segments to modern PROFINET controllers in factory automation and machine building.

Designed for cabinet installation, the device handles up to 512 words of process data and as many as 8192 I/O points, with support for large networks of up to 512 participants depending on controller class and data direction. INTERBUS line speed is selectable between 500 kbit/s and 2 Mbit/s, while clear diagnostics via 7-segment display and LEDs simplify commissioning and service. The unit operates from a 24 V DC supply with a wide 18.5 to 30.2 V DC tolerance, mounts on DIN rail, and offers IP20 protection; connections include a COMBICON power terminal and a 9-pin D-SUB for the bus.

Whether you are migrating installed bases or standardizing on PROFINET, this proxy streamlines integration, reduces wiring effort with its integrated 4-port switch, and improves maintainability through comprehensive status indication—backed by a 1-year warranty to safeguard your investment and uptime.

  • Brand: Phoenix Contact
  • Model: FL NP PND-4TX IB
  • Protocol support: PROFINET RT and INTERBUS
  • Ethernet ports: Integrated 4-port switch
  • Supply voltage: 24 V DC (18.5 to 30.2 V DC)
  • Protection rating: IP20
  • Bus connection: 9-pin D-SUB
  • Mounting: DIN rail
PHOENIX CONTACT 2985974 ; FL NP PND-4TX IB PROXY FOR PROFINET-RT-IRT
