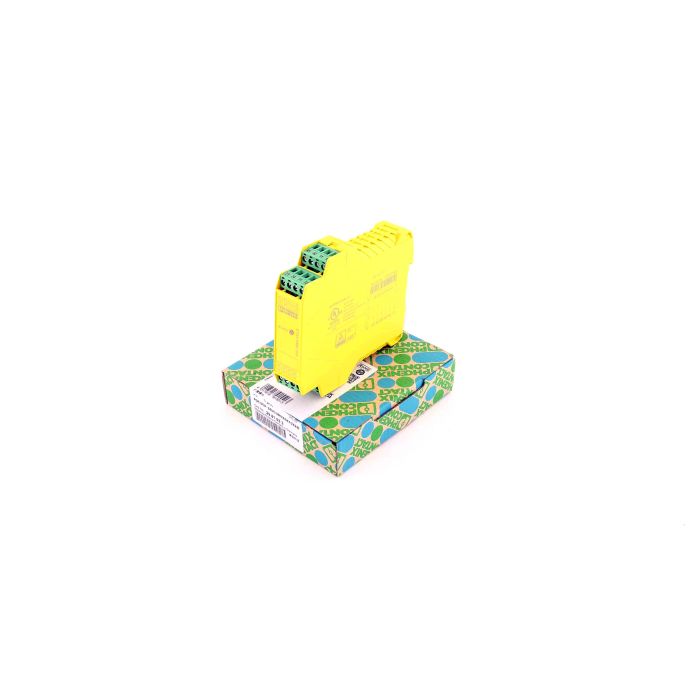

319145 (1)

PHOENIX CONTACT 2981033 ; PSR-SCP- 24UC/URM4/5X1/2X2/B New

PHOENIX CONTACT 2981033 ; PSR-SCP- 24UC/URM4/5X1/2X2/B
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2981033 ; PSR-SCP- 24UC/URM4/5X1/2X2/B
Condition:
New
Logistics
Weight:
0.20kg
Country of Manufacture:
EAN:
4017918915513
Taric-Code:
85389091

The Phoenix Contact PSR-SCP-24UC/URM4/5X1/2X2/B is a compact safety relay contact expansion module for industrial machine safety and control cabinet applications. Designed for 1- or 2-channel control, it provides reliable expansion of safety-related output contacts where additional enabling paths are required.

This PSRclassic safety relay uses electromechanical relays with forcibly guided contacts in accordance with IEC/EN 61810-3. It offers 5 normally open contacts, 1 normally closed contact and 1 feedback circuit, with pluggable screw terminals for efficient wiring and service-friendly installation on DIN rail.

With its narrow 22.5 mm housing, IP20 protection rating and suitability for applications up to Performance Level e and SIL 3 when used with an appropriate evaluation unit, this Phoenix Contact safety relay is a dependable choice for professional automation projects and is supplied with a 1-year warranty.

  • Brand: Phoenix Contact
  • Series: PSRclassic
  • Model: PSR-SCP-24UC/URM4/5X1/2X2/B
  • Product type: Safety relay contact expansion module
  • Contact configuration: 5 NO contacts, 1 NC contact, 1 feedback circuit
  • Connection type: Pluggable screw terminals
  • Protection rating: IP20
  • Width: 22.5 mm
PHOENIX CONTACT 2981033 ; PSR-SCP- 24UC/URM4/5X1/2X2/B
