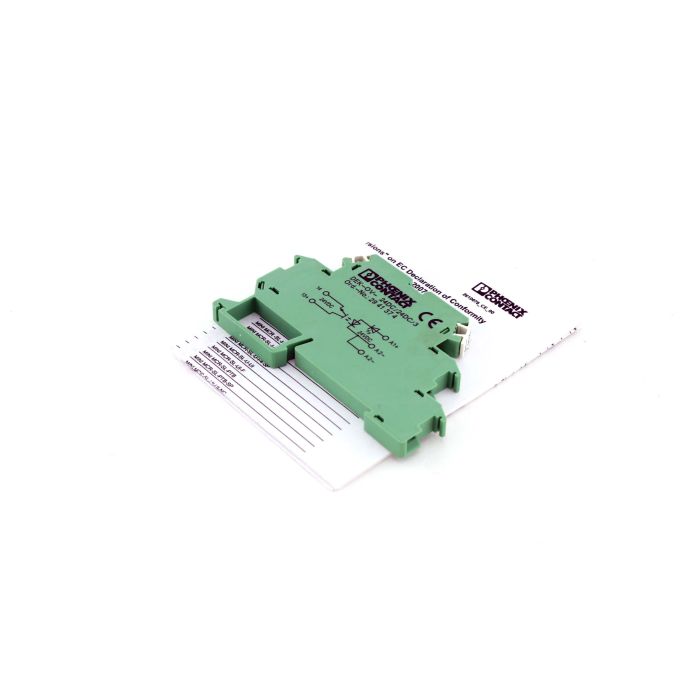

The Phoenix Contact PLC-INTERFACE solid-state relay module PLC-OSC-24DC/24DC/2/ACT (2966676) delivers reliable, wear-free output switching for PLCs and distributed I/O in industrial control panels. With an ultra-slim 6.2 mm width, it saves space on DIN rails and ensures fast, silent switching for DC loads in machine building, process automation, and building services.

Featuring a 24 V DC control input (19.2–28.8 V DC) and a 2-wire, floating electronic NO output, the module switches 3–33 V DC loads up to 3 A continuous (15 A inrush for 10 ms) with a voltage drop ≤200 mV. It supports switching frequencies up to 300 Hz, includes a yellow status LED and integrated polarity protection, and provides basic insulation with a 2.5 kV test voltage. Designed to IEC 60947-5-1 with Overvoltage Category III and Pollution Degree 2, the unit uses robust M3 screw terminals for 0.14–2.5 mm² conductors and mounts on NS 35/7.5 DIN rail.

As a compact output interface between PLC outputs and DC actuators such as valves, relays, and contactor coils within the specified limits, this solid-state design maximizes uptime by eliminating mechanical wear and reducing maintenance. To support dependable operation across the project lifecycle, it comes with a 1-year warranty that adds assurance for both purchasing and engineering teams.

• Brand: Phoenix Contact
• Series: PLC-INTERFACE
• Model: PLC-OSC-24DC/24DC/2/ACT (2966676)
• Input supply voltage: 24 V DC (19.2–28.8 V DC)
• Output voltage range: 3–33 V DC
• Continuous output current: 3 A
• Switching frequency: 300 Hz
• Mounting: DIN rail NS 35/7.5
