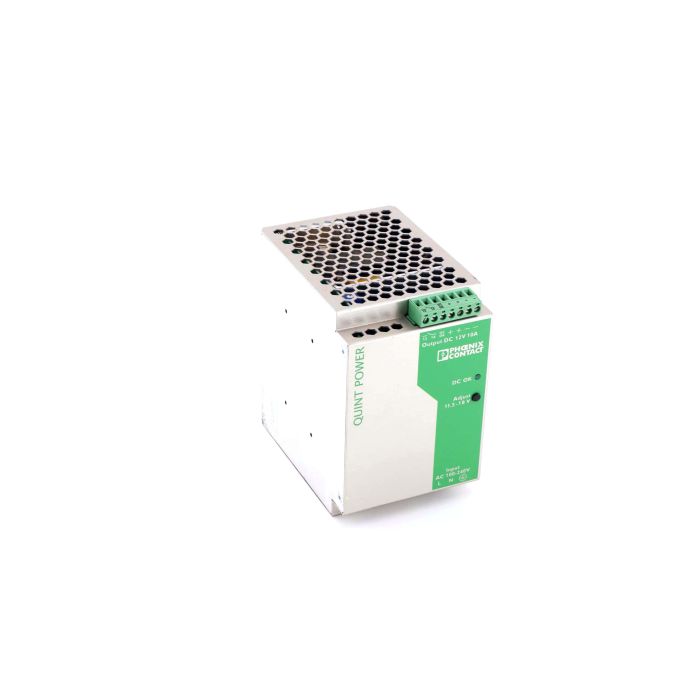

The Phoenix Contact QUINT-PS-100-240AC/12DC/10 is a high-reliability DIN rail power supply delivering 12 V DC at 10 A for demanding control and automation applications. As part of the proven QUINT POWER series, it provides clean, stable power for PLCs, sensors, and actuators in machine building, process control, and OEM panels.

Designed for industrial uptime, it accepts 85 to 264 V AC or 90 to 350 V DC and maintains stable output even with poor mains conditions. The unit offers an MTBF above 500000 h, a hold-up time over 50 ms at 120 V AC, and an unlimited capacitive load on the 12 V output. Parallel and series operation enable redundancy or power scaling, while a DC OK signal contact rated up to 30 V AC/DC and 1 A simplifies diagnostics. Safety and EMC are covered with SELV according to EN 62368-1, 2 kV isolation, and compliance with EN 61000-6 immunity and emission standards. A robust metal housing and screw terminals ensure fast, reliable installation on NS 35 DIN rail.

Ideal for panel builders and system integrators seeking dependable 12 V DC power with clear status indication and straightforward wiring, this compact industrial power supply helps reduce downtime and speeds commissioning, and it is backed by a 1-year warranty to support long-term operational continuity.

• Brand: Phoenix Contact
• Series: QUINT POWER
• Model: QUINT-PS-100-240AC/12DC/10 (2938811)
• Input voltage range: 85 to 264 V AC or 90 to 350 V DC
• Output: 12 V DC, 10 A, 120 W
• Mounting: DIN rail NS 35 (EN 60715)
• Connection type: Screw terminals
• Approvals and standards: EN 62368-1, UL Recognized, DNV GL EMC A
