429016 (1)

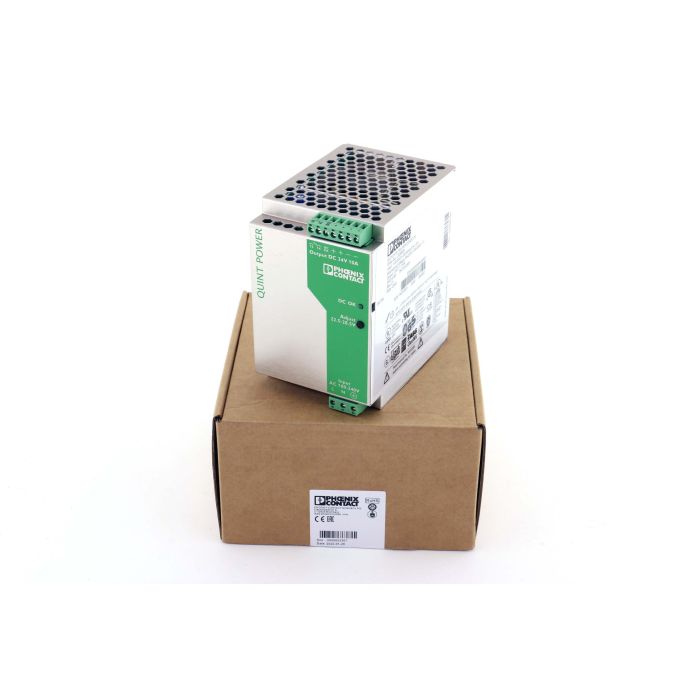

PHOENIX CONTACT 2938604 ; QUINT-PS-100-240AC/24DC/10 POWER SUPPLY New

PHOENIX CONTACT 2938604 ; QUINT-PS-100-240AC/24DC/10
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2938604 ; QUINT-PS-100-240AC/24DC/10
Condition:
New
Logistics
Weight:
1.30kg
Country of Manufacture:
Taric-Code:
85044090

Designed for demanding control cabinets and machine building, the Phoenix Contact QUINT POWER QUINT-PS-100-240AC/24DC/10 delivers a tightly regulated 24 V DC, 10 A supply for PLCs, drives, and field devices. This primary-switched, single-phase DIN-rail power supply combines compact dimensions with proven QUINT reliability to keep automation and process installations running safely and efficiently.

Its wide-range input accepts 85–264 V AC (45–65 Hz) or 90–350 V DC, enabling global deployment and resilient operation on unstable mains. With ±1% voltage regulation, up to 240 W output, unlimited capacitive load capability, and integrated output overvoltage protection, it provides clean, stable power to sensitive electronics. Parallel and series capability support redundancy and load sharing, while a >50 ms ride-through at 120 V AC helps bridge short outages. The metal AluNox housing, IP20 rating, Class I protection, extensive EMC compliance (EN 61000-6-3/-6-1, Class B; EN 55011 Class B), tested isolation up to 4 kV AC, and clear LED status indication ensure high availability across a -25 to 70 °C operating range with derating above 60 °C.

Engineered for fast installation via plug-in screw terminals and NS 35 DIN-rail mounting, this supply streamlines panel standardization and supports compliance with EN 62368-1 and marine approvals such as DNV GL, making it a practical choice for OEMs and panel builders and further backed by a 1-year warranty for added peace of mind throughout commissioning and operation.

  • Brand: Phoenix Contact
  • Series: QUINT POWER
  • Model: QUINT-PS-100-240AC/24DC/10 (2938604)
  • Input voltage range: 85–264 V AC / 90–350 V DC
  • Output: 24 V DC ±1%, 10 A (240 W)
  • Mounting: DIN rail NS 35 (EN 60715)
  • Protection rating: IP20, Class I
  • Connection type: Plug-in screw terminals (0.2–2.5 mm²)
PHOENIX CONTACT 2938604 ; QUINT-PS-100-240AC/24DC/10 POWER SUPPLY, DIN RAIL POWER SUPPLY UNIT 24 V DC/10 A, PRIMARY-SWITCHED, 1-PHASE.
