PHOENIX CONTACT 2907913; QUINT4-BUFFER/24DC/20 QUINT BUFFER MODULE New

PHOENIX CONTACT 2907913; QUINT4-BUFFER/24DC/20
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2907913; QUINT4-BUFFER/24DC/20
Condition:
New
Logistics
Weight:
1.00kg
Country of Manufacture:
Taric-Code:
85389091

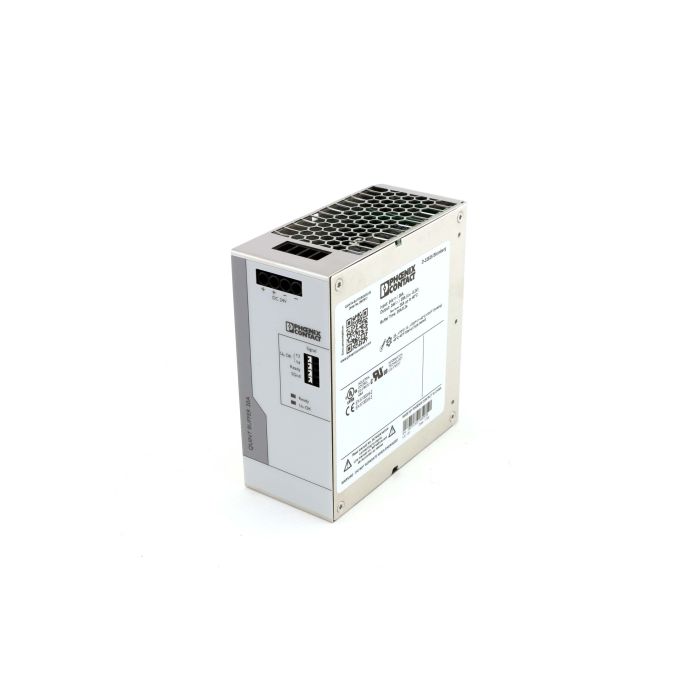

Engineered for industrial power reliability, the Phoenix Contact QUINT4-BUFFER/24DC/20 (2907913) is a maintenance-free capacitor-based buffer module that safeguards 24 V DC control circuits during brief voltage dips. Part of the QUINT BUFFER range, it installs on DIN rail and includes the preassembled UTA 107 universal rail adapter for rapid integration in control panels and machine systems.

Operating from 22.5 to 30 V DC, the module delivers a buffered 24 V DC up to 20 A; with a 0.2 s hold-up at 20 A it bridges micro-outages without batteries while achieving >98% efficiency when the energy buffer is charged. An active transistor status output and green Ready LED provide clear diagnostics, while 500 V isolation and a robust metal IP20 housing ensure dependable performance from -25 to +70 °C with derating above 40 °C. Conformity with EN 61000-6-2/-6-3 and the EMC/Low Voltage Directives, plus suitability per UL ANSI/ISA 12.12.01 Class I, Division 2, make it a strong fit for demanding industrial environments.

Whether protecting PLCs, I/O, sensors, or drives, this buffer module helps maximize uptime, simplify maintenance, and extend the life of your 24 V DC bus, and for added peace of mind in critical applications it is supplied with a 1-year warranty.

  • Brand: Phoenix Contact
  • Series: QUINT BUFFER
  • Model: QUINT4-BUFFER/24DC/20 (2907913)
  • Input voltage range: 22.5 to 30 V DC
  • Rated output current: 20 A
  • Output voltage: 24 V DC
  • Protection rating: IP20
  • Mounting: DIN rail NS 35 (EN 60715)
PHOENIX CONTACT 2907913; QUINT4-BUFFER/24DC/20 QUINT BUFFER MODULE
