429018 (1)

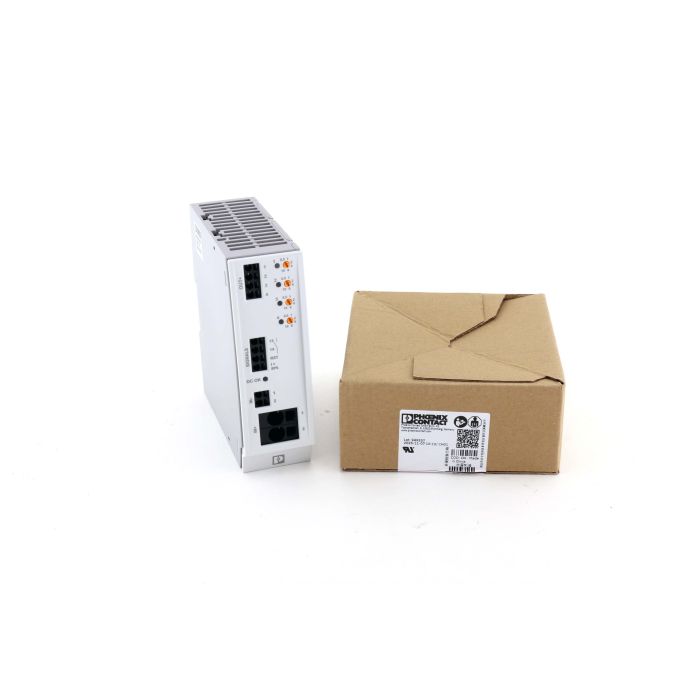

PHOENIX CONTACT 2905743 ; CBM E4 24DC/0.5-10A NO-R CIRCUIT BREAKER New

PHOENIX CONTACT 2905743 ; CBM E4 24DC/0.5-10A NO-R
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2905743 ; CBM E4 24DC/0.5-10A NO-R
Condition:
New
Logistics
Weight:
0.30kg
Country of Manufacture:
Taric-Code:
85389091

Designed for modern 24 V DC control panels, the Phoenix Contact CBM E4 24DC/0.5-10A NO-R delivers reliable, selective protection for up to four loads. Its active current limiting and coordinated channel behavior minimize voltage dips and nuisance trips, keeping PLCs, drives, and instrumentation running even under demanding inrush and fault conditions.

Featuring the CBM series nominal current assistant and electronic locking of set values, each channel can be precisely adjusted from 0.5 to 10 A for tailored protection. The unit trips electronically and fast on overload and short circuit and provides clear status via DC OK and channel LEDs. It supports input voltages from 7 to 30 V DC (nominal 24 V DC), handles short-circuit currents up to 300 A, accommodates high capacitive loads up to 75,000 µF per channel, and operates from -25 to +70 °C. Push-in spring terminals, IP20 enclosure, and 35 mm DIN-rail mounting simplify cabinet integration and maintenance.

Ideal for machine builders and panel OEMs seeking predictable selectivity and fast commissioning, this multi-channel electronic circuit breaker enhances uptime and supports standards-compliant design, and it is backed by a 1-year warranty to provide added assurance throughout your operating cycle.

  • Brand: Phoenix Contact
  • Model: CBM E4 24DC/0.5-10A NO-R
  • Number of channels: 4
  • Adjustable nominal current: 0.5 to 10 A per channel
  • Input voltage range: 7 to 30 V DC (nominal 24 V DC)
  • Protection rating: IP20
  • Connection type: Push-in spring connection
  • Mounting: 35 mm DIN rail
PHOENIX CONTACT 2905743 ; CBM E4 24DC/0.5-10A NO-R ELECTRONIC CIRCUIT BREAKER, MULTI-CHANNEL, ELECTRONIC CIRCUIT BREAKER WITH ACTIVE CURRENT LIMITATION FOR PROTECTING FOUR LOADS AT 24 V DC IN THE EVENT OF OVERLOAD AND SHORT CIRCUIT. WITH NOMINAL CURRENT ASSISTANT AND ELECTRONIC LOCKING OF THE SET NOMINAL CURRENTS. FOR INSTALLATION ON DIN RAILS.
