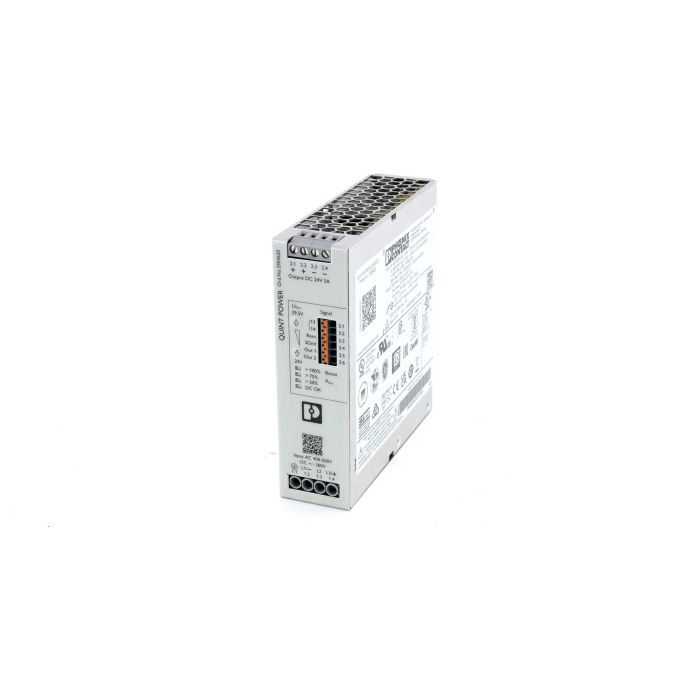

429023 (1)

PHOENIX CONTACT 2904620 ; QUINT4-PS/3AC/24DC/5 POWER SUPPLY New

PHOENIX CONTACT 2904620 ; QUINT4-PS/3AC/24DC/5
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2904620 ; QUINT4-PS/3AC/24DC/5
Condition:
New
Logistics
Weight:
0.80kg
Country of Manufacture:
Taric-Code:
85044090

The Phoenix Contact QUINT4-PS/3AC/24DC/5 (2904620) is a high-performance 3-phase DIN rail power supply delivering a stable 24 V DC/5 A for industrial automation, machine building, and process control. Part of the proven QUINT POWER portfolio, it pairs Selective Fuse Breaking (SFB) technology with an NFC interface for fast parameterization and diagnostics, helping maximize system availability and reduce commissioning time.

Designed as a primary-switched supply with U/I Advanced adjustable output characteristic, it supports demanding loads, including capacitive start-up and battery charging profiles. With 120 W rated power and typical 89% efficiency at 400 V AC, it features inrush current limiting to 11 A, a typical 34 ms mains failure buffer at 3x400 V AC, and electronic output overvoltage protection up to 32 V DC. Short-circuit and no-load proof, it supports parallel and series operation for redundancy or power scaling and uses robust push-in terminals with strong isolation and EMC immunity for harsh environments.

A compact, IP20 metal housing enables quick NS 35 DIN rail mounting and reliable operation from -25 °C to +70 °C (derating above 60 °C), making it a strong choice for control cabinets and energy systems; to further protect your investment, it comes with a 1-year warranty.

  • Brand: Phoenix Contact
  • Series: QUINT POWER
  • Model: QUINT4-PS/3AC/24DC/5 (2904620)
  • Input supply: 3-phase 400 V AC (50-60 Hz)
  • Output: 24 V DC / 5 A
  • Output power: 120 W
  • Protection rating: IP20
  • Connection type: Push-in terminals
PHOENIX CONTACT 2904620 ; QUINT4-PS/3AC/24DC/5 POWER SUPPLY, PRIMARY-SWITCHED QUINT POWER POWER SUPPLY WITH FREE CHOICE OF OUTPUT CHARACTERISTIC CURVE, SFB (SELECTIVE FUSE BREAKING) TECHNOLOGY, AND NFC INTERFACE, INPUT: 3-PHASE, OUTPUT: 24 V DC/5 A
