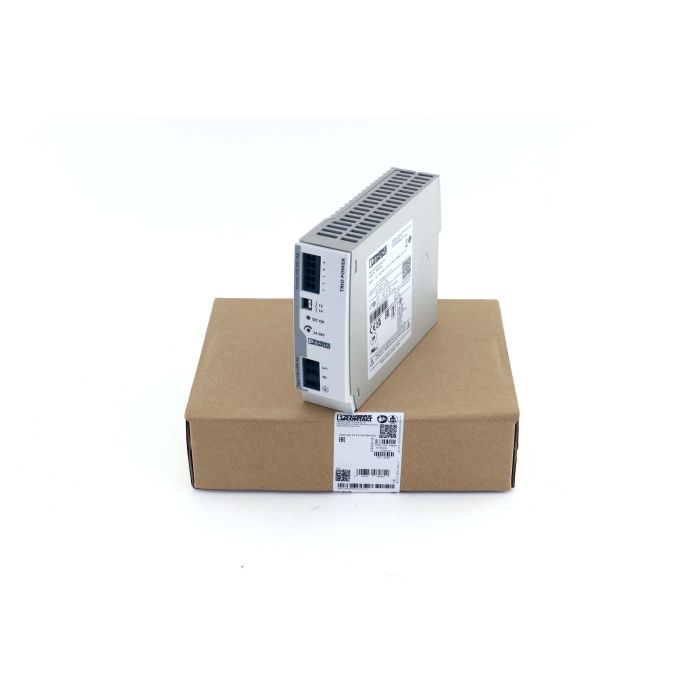

PHOENIX CONTACT 2903149 ; TRIO-PS-2G/1AC/24DC/10 POWER SUPPLY New

PHOENIX CONTACT 2903149 ; TRIO-PS-2G/1AC/24DC/10
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2903149 ; TRIO-PS-2G/1AC/24DC/10
Condition:
New
Logistics
Weight:
1.00kg
Country of Manufacture:
Taric-Code:
85044090

The Phoenix Contact TRIO POWER TRIO-PS-2G/1AC/24DC/10 is a robust DIN-rail power supply engineered for industrial control panels, machine building, and process automation. Delivering a stable 24 V DC rail at 10 A, it reliably feeds PLCs, I/O, actuators, and sensors in demanding environments while supporting quick, clean installation in modern cabinets.

It provides 24 V DC/10 A (240 W) with a U/I characteristic and dynamic load reserve to start capacitive and inductive loads with confidence. A wide-range 1-phase input of 100–240 V AC (50/60 Hz) or 110–250 V DC ensures global compatibility, while efficiency >91% at 230 V AC reduces heat and energy losses. Push-in front terminals speed wiring; a DC OK LED simplifies diagnostics; short-circuit and overload protection, output OVP ≤30 V DC, and no-load capability maximize uptime. With 3 kV isolation, EMC Class B emissions compliance, UL 508 listing, and IEC 62368-1 (SELV) safety, it meets stringent industrial and building requirements. Operating from -25 to +70 °C with derating above 60 °C and usable up to 5000 m altitude, its IP20 metal housing supports parallel or series operation for redundancy and power scaling.

For OEMs and panel builders standardizing on a dependable 24 V DC supply rail, this TRIO POWER unit combines performance, compliance, and installation speed, and it is backed by a 1-year warranty to support your uptime commitments.

  • Brand: Phoenix Contact
  • Series: TRIO POWER (2G)
  • Model: TRIO-PS-2G/1AC/24DC/10
  • Input voltage: 100–240 V AC (50/60 Hz) or 110–250 V DC
  • Output: 24 V DC / 10 A (240 W)
  • Connection type: Push-in terminals
  • Mounting: DIN rail NS 35 (EN 60715)
  • Approvals: UL 508, IEC 62368-1 (SELV), EN 61000-6-3 Class B
PHOENIX CONTACT 2903149 ; TRIO-PS-2G/1AC/24DC/10 POWER SUPPLY, PRIMARY-SWITCHED TRIO POWER POWER SUPPLY WITH PUSH-IN CONNECTION FOR DIN RAIL MOUNTING, INPUT: SINGLE PHASE, OUTPUT: 24 V DC/10 A
