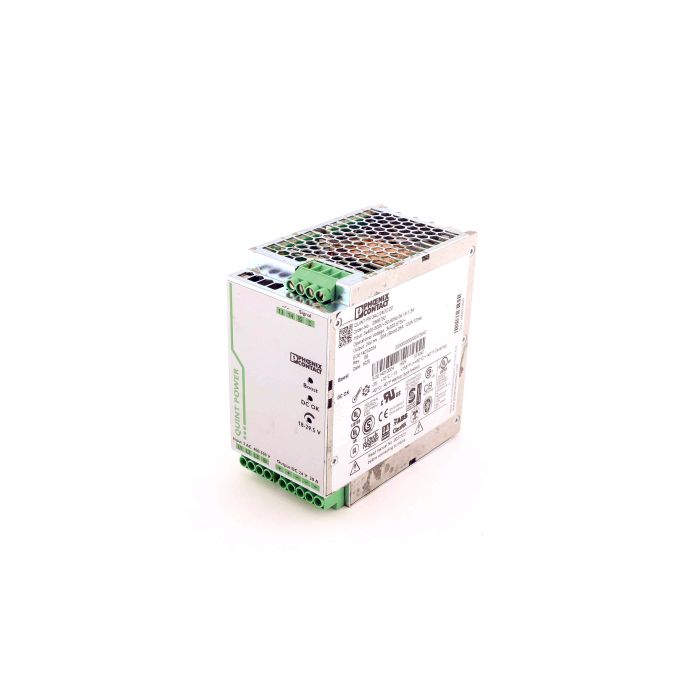

355628 (1)

PHOENIX CONTACT 2866792 ; QUINT-PS/3AC/24DC/20 Used

PHOENIX CONTACT 2866792 ; QUINT-PS/3AC/24DC/20
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2866792 ; QUINT-PS/3AC/24DC/20
Condition:
Used
Logistics
Weight:
1.50kg
Country of Manufacture:
Taric-Code:
85044090

The Phoenix Contact QUINT POWER QUINT-PS/3AC/24DC/20 is a high-performance three-phase DIN rail power supply delivering a stable 24 V DC at 20 A for demanding industrial automation, machine building, and process control applications. Featuring SFB Technology (Selective Fuse Breaking), it trips downstream protective devices quickly and selectively to maintain system availability and protect critical loads.

Engineered for global panels, it accepts 3x 320...575 V AC (45...65 Hz) or 450...800 V DC and provides an adjustable 18...29.5 V output up to 480 W. A robust U/I output characteristic, parallel and series capability for redundancy or power expansion, and an MTBF > 900,000 h ensure long service life. Comprehensive protection includes transient surge protection with varistor and gas arrester, >20 ms mains failure bridging, and reinforced isolation. Certified to UL 508, SEMI F47, marine approvals, and EN 55011 Class B EMC, it mounts on NS 35 DIN rail and connects via screw terminals (IP20).

Choose this supply to stabilize your 24 V control bus, reduce downtime, and simplify compliance in control cabinets, while the included 1-year warranty provides additional assurance for long-running installations.

  • Brand: Phoenix Contact
  • Series: QUINT POWER
  • Model: QUINT-PS/3AC/24DC/20 (2866792)
  • Input voltage: 3x 320...575 V AC (45...65 Hz) or 450...800 V DC
  • Output: 24 V DC / 20 A (adjustable 18...29.5 V)
  • Output power: 480 W
  • Protection rating: IP20
  • Connection type: Screw terminal
