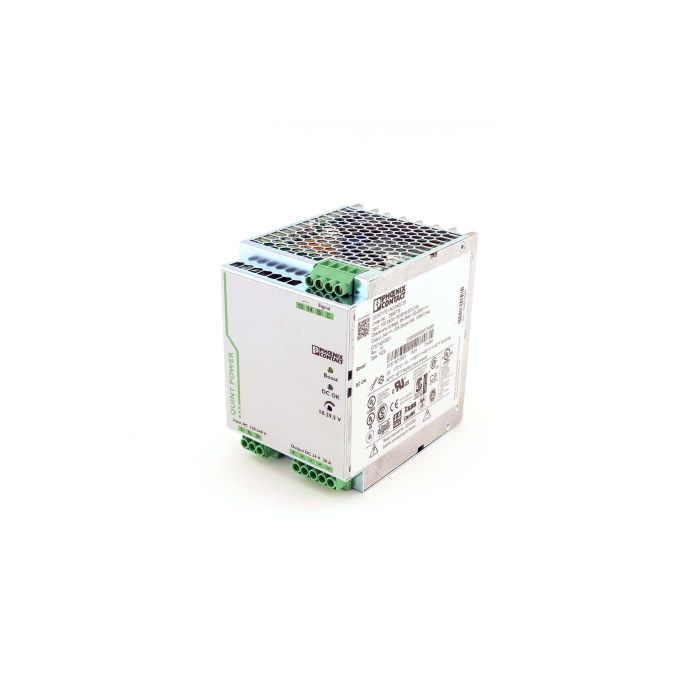

Power your control systems with the PHOENIX CONTACT QUINT POWER QUINT-PS/1AC/24DC/20. This robust 24 V DC, 20 A DIN rail power supply combines high reliability with SFB Technology to selectively trip standard circuit breakers and keep essential loads online. Ideal for control cabinets in machine building, process automation, and infrastructure, it delivers a clean, stable 24 V bus for PLCs, I/O, and drives.

Designed for demanding industrial environments, it offers a wide-range input of 85 to 264 V AC or 90 to 350 V DC (single-phase), 480 W output, and an adjustable output from 18 to 29.5 V DC to compensate voltage drops or provide boost during peak loads. High efficiency (typ. 92% at 120 V AC), hold-up time >32 ms, and robust protection—including OVP ≤35 V DC and short-circuit resistance—support reliable uptime. The IP20 metal housing with 4 kV isolation, screw terminals up to 6 mm², and DIN rail (NS 35) mounting simplify integration. Parallel and series operation enable redundancy or power scaling, while EMC Class B compliance and approvals such as UL 508, SEMI F47, and marine certifications facilitate global use.

Whether you are upgrading an existing panel or standardizing a new build, this QUINT POWER supply reduces commissioning time and safeguards critical automation loads, and with a 1-year warranty it gives you added confidence throughout the lifecycle of your equipment.

• Brand: PHOENIX CONTACT
• Series: QUINT POWER
• Model: QUINT-PS/1AC/24DC/20 (2866776)
• Input voltage range: 85 to 264 V AC or 90 to 350 V DC
• Output: 24 V DC / 20 A (adjustable 18 to 29.5 V DC)
• Output power: 480 W
• Protection rating: IP20
• Connection type: Screw terminal
