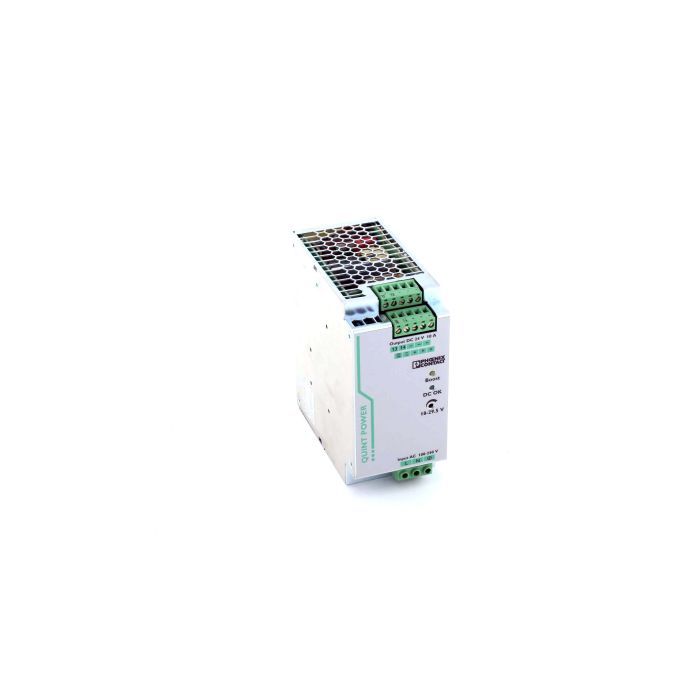

412758 (1)

PHOENIX CONTACT 2866763 ; QUINT-PS/1AC/24DC/10 Used

PHOENIX CONTACT 2866763 ; QUINT-PS/1AC/24DC/10
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2866763 ; QUINT-PS/1AC/24DC/10
Condition:
Used
Logistics
Weight:
1.10kg
Country of Manufacture:
Taric-Code:
85044090

Engineered for demanding control cabinets, the Phoenix Contact QUINT POWER QUINT-PS/1AC/24DC/10 delivers a stable 24 V DC, 10 A supply with SFB Technology for rapid, selective tripping of downstream miniature circuit breakers. This primary switched-mode DIN rail power supply combines high reliability with robust EMC performance, making it an excellent choice for machine building, process automation, and infrastructure applications where a dependable 24 V DC power supply is essential.

With 1-phase AC input capability and a wide DC input range of 110...350 V DC, the device offers installation flexibility across global panels. The adjustable 18...29.5 V DC output compensates voltage drops on long runs, while the U/I characteristic and SFB Technology provide strong dynamics for reliable breaker tripping. High efficiency (typ. 92% at 120 V AC), MTBF > 940,000 h, and operation from -25...70 °C (derating >60 °C: 2.5%/K) support continuous service. Features include screw terminals, NS 35 DIN-rail mounting, IP20 housing, 4 kV AC isolation (input/output), parallel/redundant operation, and approvals such as UL 508, IEC 61010, SEMI F47, EN 50121-4, and marine classifications.

Choose this 24 V DC power supply to increase system availability with fast fault clearing, wide input compatibility, and proven industrial approvals, and gain peace of mind in long-term operation as it is supported by our 1-year warranty as part of a hassle-free procurement and lifecycle service.

  • Brand: Phoenix Contact
  • Model: QUINT-PS/1AC/24DC/10 (2866763)
  • Output: 24 V DC / 10 A (adjustable 18...29.5 V DC)
  • Input type: 1-phase AC or DC
  • DC input range: 110 V DC ... 350 V DC
  • Connection type: Screw terminal
  • Mounting: DIN rail (NS 35, EN 60715)
  • Protection rating: IP20
