429029 (1)

PHOENIX CONTACT 2866763 ; QUINT-PS/1AC/24DC/10 POWER SUPPLY UNIT New

PHOENIX CONTACT 2866763 ; QUINT-PS/1AC/24DC/10
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2866763 ; QUINT-PS/1AC/24DC/10
Condition:
New
Logistics
Weight:
1.50kg
Country of Manufacture:
EAN:
4046356113793
Taric-Code:
85389091

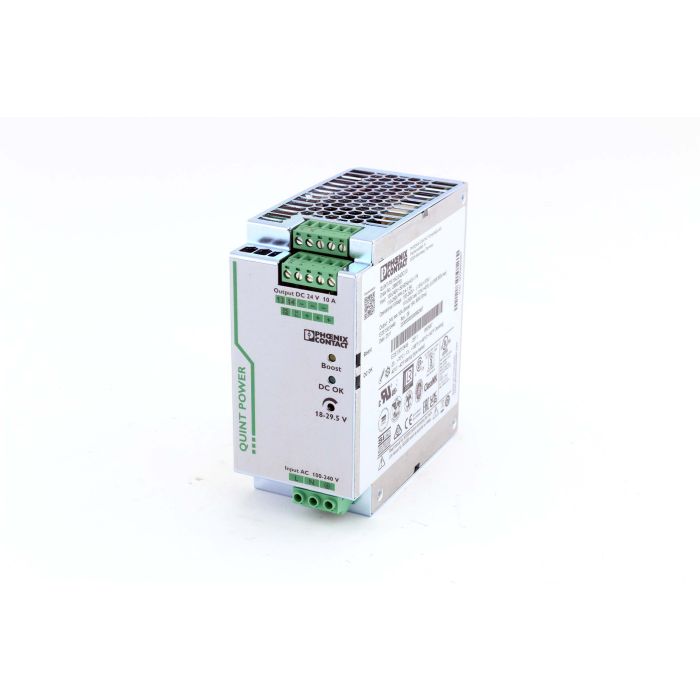

The Phoenix Contact QUINT-PS/1AC/24DC/10 (2866763) is a high-availability 24 V DC 10 A DIN rail power supply from the QUINT POWER series, engineered for industrial automation and control cabinet applications. Featuring SFB Technology (Selective Fuse Breaking), it ensures rapid tripping of standard circuit breakers to keep critical 24 V loads online and maximize machine uptime.

With a robust primary-switched design, the unit provides an adjustable 18–29.5 V DC output at up to 240 W, short-circuit-proof with integrated OVP and transient protection via varistor and gas discharge arrestor. The 1-phase input supports AC operation at 45–65 Hz and accepts DC supply from 110–350 V DC, while reinforced isolation (4 kV AC in/out) and an IP20 metal housing suit demanding environments. Parallel and series capability enable redundancy concepts, MTBF exceeds 940,000 h (25 °C), and comprehensive EMC/safety approvals (UL 508, IEC 61010-2-201, marine) streamline global deployment.

Ideal for OEM panels, process equipment and maintenance retrofits, this 24 V power supply stabilizes the control voltage, reduces nuisance trips and simplifies selective protection on the 24 V bus, and to safeguard your investment from commissioning through the first service interval it is supplied with a 1-year warranty.

  • Brand: Phoenix Contact
  • Series: QUINT POWER
  • Model: QUINT-PS/1AC/24DC/10 (2866763)
  • Output: 24 V DC / 10 A (adjustable 18–29.5 V DC)
  • Input: 1-phase AC (45–65 Hz) or 110–350 V DC
  • Protection rating: IP20
  • Connection: Screw terminals
  • Mounting: DIN rail NS 35 (EN 60715)
PHOENIX CONTACT 2866763 ; QUINT-PS/1AC/24DC/10 PRIMARY-SWITCHED POWER SUPPLY UNIT QUINT POWER, SCREW CONNECTION, DIN RAIL MOUNTING, SFB TECHNOLOGY (SELECTIVE FUSE BREAKING), INPUT: 1-PHASE, OUTPUT: 24 V DC / 10 A
