412759 (1)

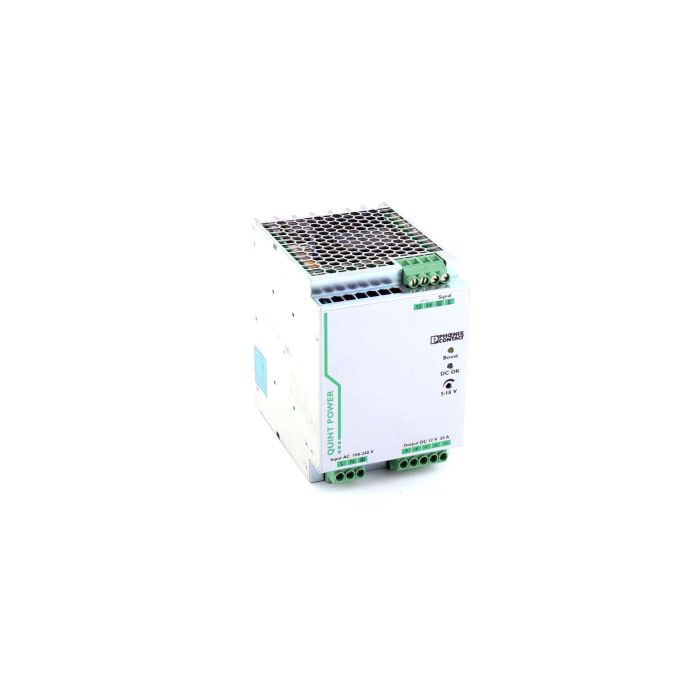

PHOENIX CONTACT 2866721 ; QUINT-OPS/1AC/12 Used

PHOENIX CONTACT 2866721 ; QUINT-OPS/1AC/12
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2866721 ; QUINT-OPS/1AC/12
Condition:
Used
Logistics
Weight:
1.40kg
Country of Manufacture:
Taric-Code:
85044090

Deliver stable 12 V DC power to demanding automation equipment with the Phoenix Contact QUINT POWER 2866721. This primary switched-mode DIN-rail power supply combines high availability with SFB Technology (Selective Fuse Breaking) to reliably trip standard miniature circuit breakers and maintain selectivity in 24/7 industrial control systems, machinery, and process installations.

With a wide 1-phase input of 85 to 264 V AC or 90 to 350 V DC and a nominal 20 A output, it provides 240 W at 12 V DC, adjustable from 5 to 18 V DC to compensate voltage drops or match load requirements. The robust U/I characteristic, electronic secondary-side protection, and parallel/series capability support redundancy concepts, while the IP20 metal housing, Class I protection, high MTBF, and comprehensive approvals (UL 508, IEC 61010, EMC Class B) ensure reliable operation on NS 35 DIN rail.

For panel builders, OEMs, and maintenance teams seeking a compact, efficient, and service-friendly power supply with fast fault-clearing, this QUINT POWER unit offers a strong balance of performance and safety, and it is supplied with a 1-year warranty to support long-term uptime commitments.

  • Brand: Phoenix Contact
  • Series: QUINT POWER
  • Model: 2866721 (QUINT-OPS/1AC/12)
  • Input voltage range: 85 to 264 V AC / 90 to 350 V DC
  • Output: 12 V DC, 20 A (adjustable 5 to 18 V DC)
  • Output power: 240 W
  • Protection rating: IP20
  • Mounting: DIN rail NS 35 (EN 60715)
PHOENIX CONTACT 2866721 ; QUINT-OPS/1AC/12
