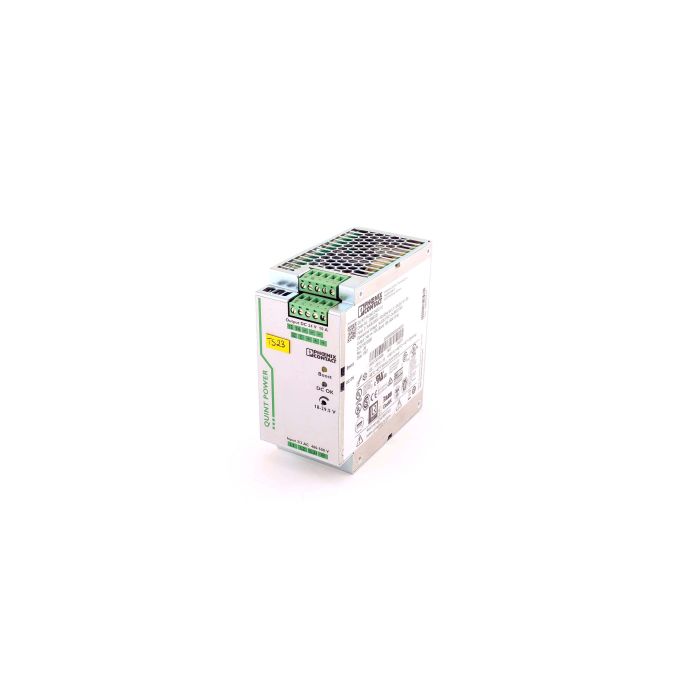

PHOENIX CONTACT 2866705 ; QUINT-PS/3AC/24DC/10 POWER SUPPLY UNIT Used

PHOENIX CONTACT 2866705 ; QUINT-PS/3AC/24DC/10
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2866705 ; QUINT-PS/3AC/24DC/10
Condition:
Used
Logistics
Weight:
1.10kg
Country of Manufacture:
Taric-Code:
85389091

The Phoenix Contact QUINT POWER QUINT-PS/3AC/24DC/10 (2866705) is an industrial DIN-rail power supply engineered to maximize uptime in automation, process, and machine-building applications. Featuring SFB Technology (Selective Fuse Breaking) for rapid fault clearing and a robust design for continuous operation, it delivers stable 24 V DC power at 10 A for demanding control cabinets.

A wide-range input accepts 3-phase AC (45–65 Hz) as well as high-voltage DC from 450 to 800 V, while the adjustable 24 V DC output (18–29.5 V, 10 A / 240 W) enables voltage drop compensation and precise setpoint control. A durable metal IP20 housing, pluggable screw terminals, and the ability to operate in parallel or series support scalable, redundant architectures with proven EMC performance and global approvals.

Built for harsh environments with an operating range from -25 to 70 °C (derating above 60 °C), long MTBF, and clear LED status indication, this DIN-rail power supply helps reduce downtime and simplify maintenance, and it is backed by a 1-year warranty to safeguard your project timelines.

  • Brand: Phoenix Contact
  • Series: QUINT POWER
  • Model: QUINT-PS/3AC/24DC/10 (2866705)
  • Output: 24 V DC / 10 A (adjustable 18–29.5 V)
  • Input range: 3-phase AC 45–65 Hz or 450–800 V DC
  • Protection rating: IP20
  • Connection type: Pluggable screw connection
  • Mounting: DIN rail NS 35 (EN 60715)
PHOENIX CONTACT 2866705 ; QUINT-PS/3AC/24DC/10 PRIMARY-SWITCHED POWER SUPPLY UNIT QUINT POWER, PLUGGABLE SCREW CONNECTION, SFB TECHNOLOGY (SELECTIVE FUSE BREAKING), INPUT: 3-PHASE, OUTPUT: 24 V DC / 10 A
