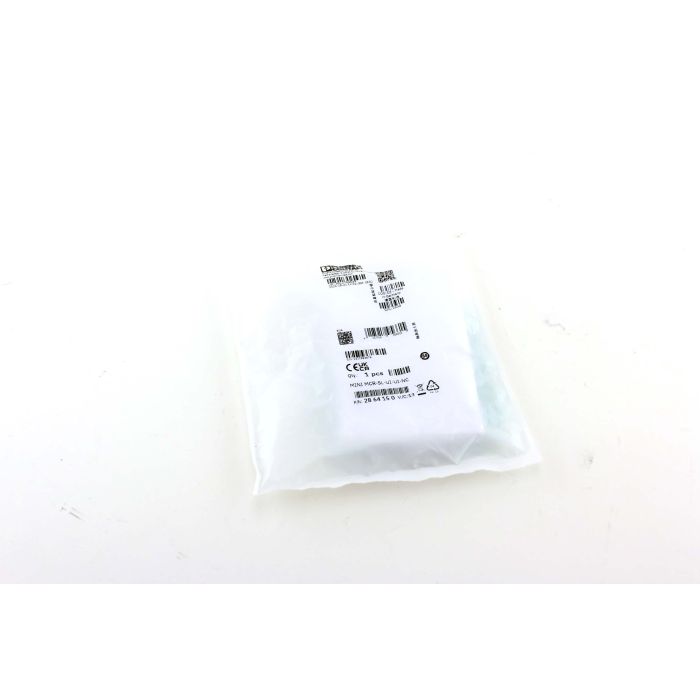

429021 (1)

PHOENIX CONTACT 2864150 ; MINI MCR-SL-UI-UI-NC SIGNAL CONDITIONER New

PHOENIX CONTACT 2864150 ; MINI MCR-SL-UI-UI-NC
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2864150 ; MINI MCR-SL-UI-UI-NC
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

Designed for precise signal conditioning in demanding control environments, the Phoenix Contact MINI MCR-SL-UI-UI-NC isolates and converts analog signals with dependable 3-way galvanic separation. This ultra-slim 6.2 mm DIN-rail module integrates seamlessly into PLC cabinets and process control systems, ensuring clean, interference-free transmission for voltage and current loops across industrial automation, machine building, and building services.

The input and output can be configured via DIP switches for 0–10 V or 0–20 mA, enabling flexible adaptation from field devices to PLC I/O. With ≤0.1% span accuracy, ~3.2 ms response time and a 100 Hz (–3 dB) bandwidth, the device maintains measurement integrity even in dynamic applications. It operates from 24 V DC (19.2–30 V DC), provides robust EMC immunity per EN 61000-6-2 and emission per EN 61000-6-4, includes transient protection, and offers IP20 screw terminals for reliable wiring. 3-way isolation with a 1.5 kV AC test voltage and basic insulation (50 V) safeguards input, output and supply.

Built for fast commissioning and long-term reliability on EN 60715 DIN rails, this single-channel isolator reduces ground loops and wiring complexity while enhancing system availability, and it is supplied with a 1-year warranty to support maintenance planning and procurement assurance.

  • Brand: Phoenix Contact
  • Series: MINI Analog
  • Model: MINI MCR-SL-UI-UI-NC (2864150)
  • Input/Output signals: 0–10 V or 0–20 mA (configurable)
  • Supply voltage: 19.2–30 V DC (24 V DC nominal)
  • Isolation: 3-way isolation, 1.5 kV AC test
  • Connection type: Screw terminals
  • Protection rating: IP20
PHOENIX CONTACT 2864150 ; MINI MCR-SL-UI-UI-NC INPUT SIGNAL CONDITIONER, 3-WAY SIGNAL CONDITIONER FOR THE ELECTRICAL ISOLATION OF ANALOG SIGNALS, I/O CAN BE CONFIGURED VIA DIP SWITCHES, WITH SCREW CONNECTION, STANDARD CONFIGURATION
