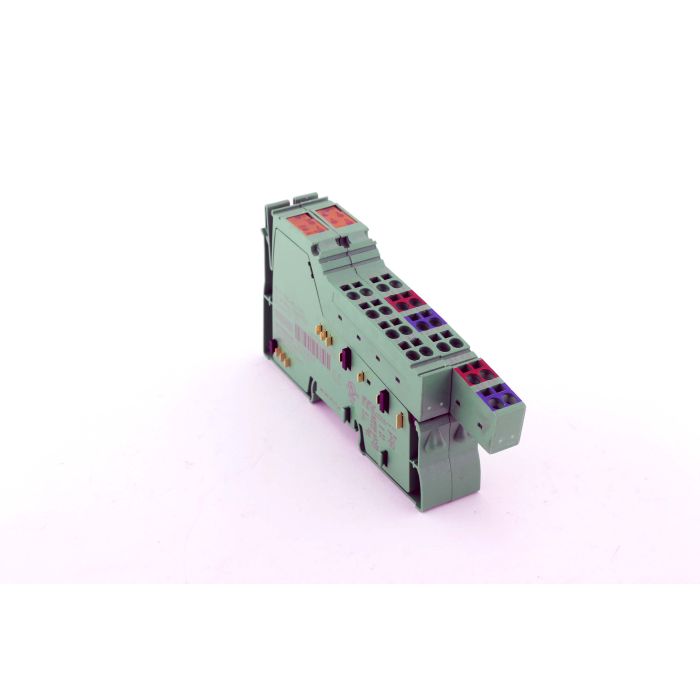

The Phoenix Contact IB IL INC-IN-PAC incremental encoder interface for the Inline system enables precise position capture in industrial automation. It accepts differential EIA-422 and single-ended incremental encoders, making it a flexible choice for motion control on packaging lines, conveyors, and machine tools. In addition to the encoder channel, three 24 V DC digital inputs and one NPN output support compact PLC interfacing across the Inline I/O platform.

Engineered for robust performance, the module operates from a 24 V DC supply (19.2 to 30 V DC) and provides a 5 V encoder supply. It captures high-speed signals up to 300 kHz and supports shielded cable runs up to 30 m to meet EMC requirements. With 500 kbit/s local bus throughput, IP20 protection, spring-cage Inline connectors, and DIN-rail mounting, it simplifies installation while ensuring reliable data acquisition in demanding environments.

Ideal for OEMs and system integrators who need dependable incremental encoder feedback, this Inline function module reduces commissioning time and enhances machine availability, and it is backed by a 1-year warranty for added peace of mind.

• Brand: Phoenix Contact
• Series: Inline
• Model: IB IL INC-IN-PAC (2861755)
• Encoder input: Incremental, EIA-422 differential or single-ended
• Max input frequency: 300 kHz
• Supply voltage: 24 V DC (19.2 to 30 V DC)
• Local bus speed: 500 kbit/s
• Protection rating: IP20
