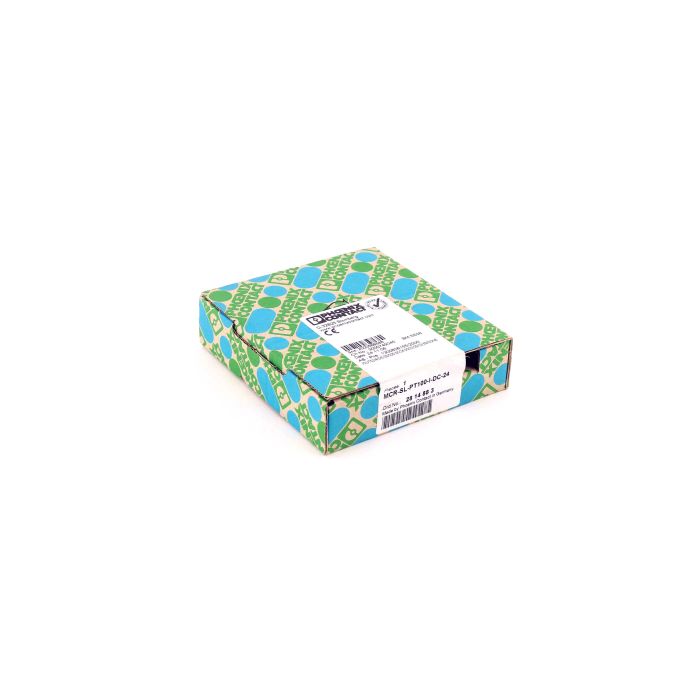

The PHOENIX CONTACT MCR-SL-PT100-I-DC-24 is a compact temperature transmitter engineered for professional signal conditioning in control cabinets. It converts Pt100 resistance thermometer inputs into a robust current loop, making it ideal for PLC and DCS applications in machine building, HVAC, and process automation where reliable temperature measurement is critical.

Covering a freely configurable -100 °C to +600 °C measuring range with 2-, 3-, or 4-wire connection, the device delivers 0/4–20 mA outputs for seamless integration into analog input cards. Zero and span are adjustable by ±5% via on-device keys, while a typical reaction time of approx. 500 ms supports responsive control loops. Operating from 20 to 30 V DC, the unit features IP20 protection, pluggable screw terminals for fast wiring, EMC-compliant design, and a maximum load of 500 Ω for reliable loop performance.

Developed for consistent accuracy and straightforward commissioning, this Phoenix Contact temperature transmitter helps panel builders and OEMs standardize temperature measurement across installations, and it is backed by a 1-year warranty to support dependable long-term operation.

• Brand: PHOENIX CONTACT
• Model: MCR-SL-PT100-I-DC-24 (2814883)
• Sensor input: Pt100, 2-/3-/4-wire
• Temperature range: -100 °C to +600 °C
• Output signal: 0/4–20 mA
• Supply voltage: 20 to 30 V DC
• Protection rating: IP20
• Connection type: Pluggable screw terminal
