heroicons/solid/check 10K Products in Stock
heroicons/solid/check Worldwide Delivery
heroicons/solid/check Order before 4 PM CET, shipped today
heroicons/solid/check New 12 months warranty
347377 (1)

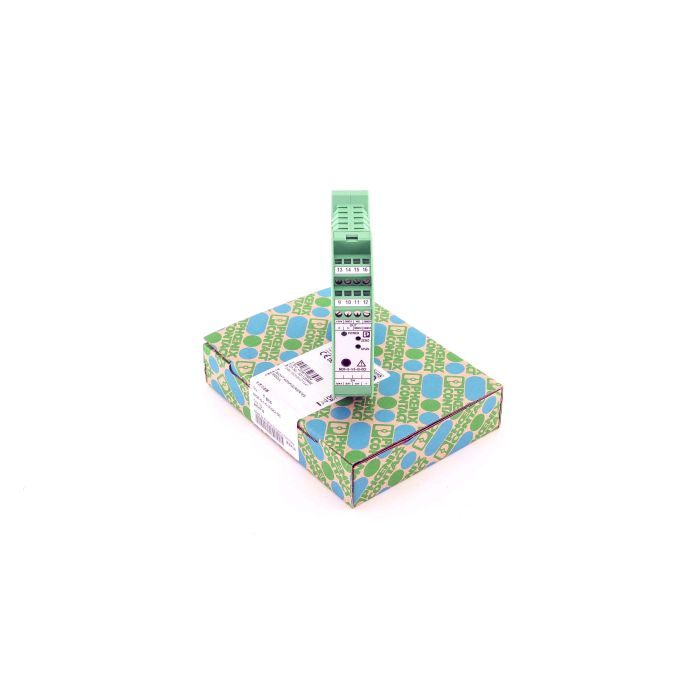

PHOENIX CONTACT 2814715 ; MCR-S-1-5-UI-DCI-NC New

PHOENIX CONTACT 2814715 ; MCR-S-1-5-UI-DCI-NC
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2814715 ; MCR-S-1-5-UI-DCI-NC
Condition:
New
Logistics
Weight:
0.20kg
Country of Manufacture:
EAN:
4017918169275
Taric-Code:
85389091

The Phoenix Contact MCR-S-1-5-UI-DCI-NC is a programmable current measuring transducer for reliable conversion of DC, AC and distorted currents in industrial installations, panel building and process control applications. This slim MCR interface module is designed for precise signal conditioning when measured current values need to be transferred safely to PLC, DCS or monitoring systems.

Supplied unconfigured, the unit can be adapted to input current ranges from 0 to 0.2 A up to 0 to 11 A AC/DC, making it suitable for flexible use across standard measurement tasks. It operates on 20 to 30 V DC and provides a voltage or current output, with 0 to 5 V and 0 to 20 mA output signals available. The device features galvanic isolation, screw connection technology, DIN rail mounting and an IP20 housing for control cabinet installation.

For OEMs, machine builders and maintenance teams, this Phoenix Contact transducer offers a compact and dependable solution for current measurement and signal conversion where stable performance and straightforward integration are essential, and for added peace of mind it is supplied with a 1-year warranty.

  • Brand: Phoenix Contact
  • Model: MCR-S-1-5-UI-DCI-NC
  • Input current range: 0 to 0.2 A up to 0 to 11 A AC/DC
  • Output type: 0 to 20 mA / 0 to 5 V
