heroicons/solid/check 10K Products in Stock
heroicons/solid/check Worldwide Delivery
heroicons/solid/check Order before 4 PM CET, shipped today
heroicons/solid/check New 12 months warranty
412637 (1)

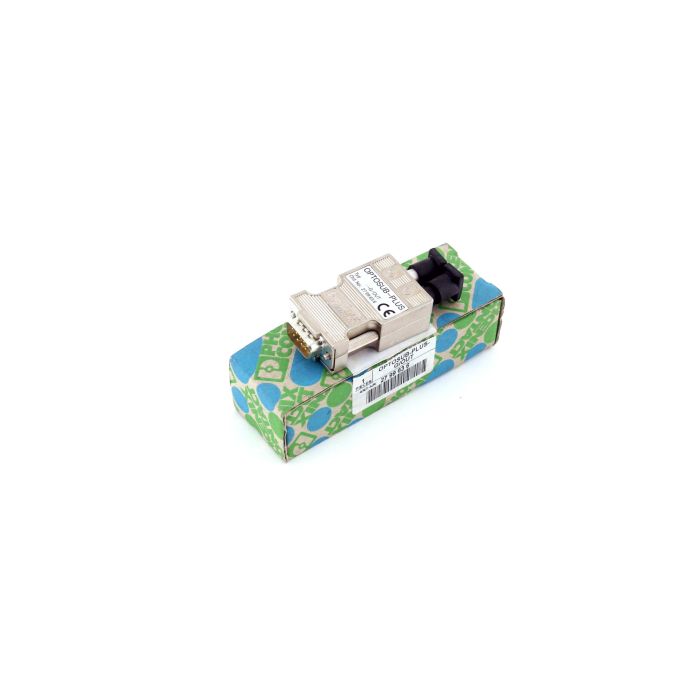

PHOENIX CONTACT 2799636 ; OPTOSUB-PLUS-G/OUT INTERBUS/FIBER OPTIC ADAPTER New

PHOENIX CONTACT 2799636 ; OPTOSUB-PLUS-G/OUT
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2799636 ; OPTOSUB-PLUS-G/OUT
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The PHOENIX CONTACT OPTOSUB-PLUS-G/OUT is an INTERBUS to fiber optic adapter that converts the remote-OUT interface into a robust optical link using B-FOC connectors. Engineered for industrial automation networks, it extends INTERBUS segments, boosts EMC immunity, and enables long-distance, interference-free communication across cabinets, machines, and process installations.

Delivering dependable performance at 500 kbit/s, the module provides two channels (RxD/TxD) in full duplex over 50/125 µm multimode fiber at 850 nm. With transmitter power of 25.12 µW (-16 dBm) and receiver sensitivity of -27 dBm, it supports optical runs up to 3300 m including a 3 dB system reserve. Power is drawn from the data channel, eliminating the need for an external supply, while a D-SUB 9 interface on the copper side and B-FOC on the fiber side streamline installation. The metallized ABS housing and Class A EMC design suit industrial environments with an operating range of 0 to 55 °C.

Whether for retrofit or new build, this INTERBUS fiber optic converter helps stabilize fieldbus performance, reduce downtime, and simplify plant-wide networking, and to support your project lifecycle it is supplied with a 1-year warranty.

  • Brand: PHOENIX CONTACT
  • Series: OPTOSUB-PLUS-G
  • Model: OPTOSUB-PLUS-G/OUT (2799636)
  • Interface: INTERBUS remote-OUT to fiber optic
  • Data rate: 500 kbit/s
  • Max transmission length: 3300 m (with 50/125 µm, 2.5 dB/km, incl. 3 dB reserve)
  • Connections: D-SUB 9 (electrical), B-FOC (fiber)
  • Supply: via data channel (no external supply)
PHOENIX CONTACT 2799636 ; OPTOSUB-PLUS-G/OUT INTERBUS/FIBER OPTIC ADAPTER
