410114 (1)

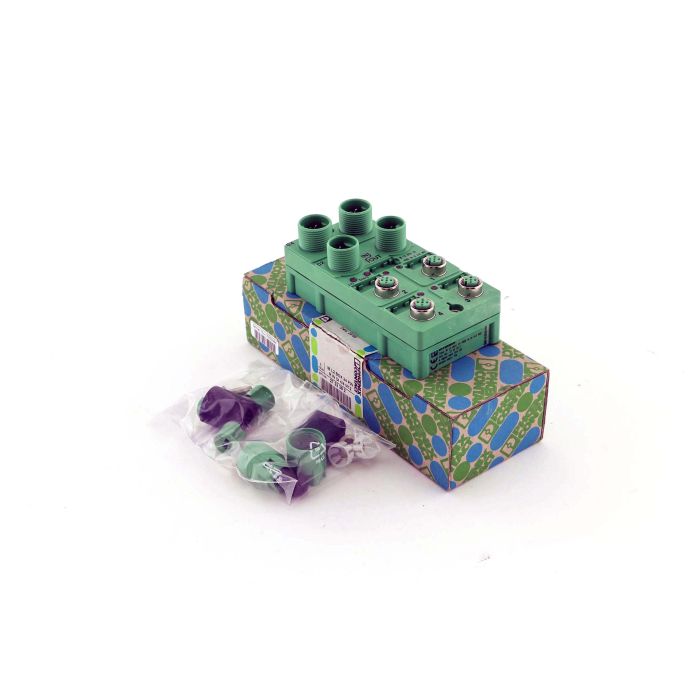

PHOENIX CONTACT 2732392 ; IB L2 BOX 24 PWR IN DI 4/4 M12 New

PHOENIX CONTACT 2732392 ; IB L2 BOX 24 PWR IN DI 4/4 M12
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2732392 ; IB L2 BOX 24 PWR IN DI 4/4 M12
Condition:
New
Logistics
Weight:
0.30kg
Country of Manufacture:
Taric-Code:
85389091

As part of the INTERBUS IB L2 family, the Phoenix Contact IB L2 BOX 24 PWR IN DI 4/4 M12 is a compact, field-mountable I/O and power module for decentralized automation. With four digital inputs, robust M12 connectivity and an IP65/IP67 enclosure, it ensures reliable sensor interfacing in machine building, conveyor systems and process equipment where 24 V DC control wiring and high protection classes are essential.

Engineered for 24 V DC periphery, the module accepts a supply from 20 to 30 V DC and features a short-circuit-protected initiator supply for sensors. Inputs are evaluated with industrial thresholds (0 signal: 0 to 5 V; 1 signal: 13 to 30 V) and wired via 4-wire technology using QUICKON fast connection to reduce installation time. M12 ports and a feed-in option for additional supply simplify power distribution on the machine, while the rugged design supports dependable operation in demanding environments.

Whether you are retrofitting or standardizing a sensor network, this INTERBUS IB L2 I/O module streamlines commissioning and uptime with proven connectivity and clear signaling, and it includes a 1-year warranty for added peace of mind in continuous operation.

  • Brand: Phoenix Contact
  • Series: INTERBUS IB L2 BOX
  • Model: IB L2 BOX 24 PWR IN DI 4/4 M12
  • Digital inputs: 4
  • Supply voltage (periphery): 20 to 30 V DC
  • Input signal levels: 0: 0 to 5 V; 1: 13 to 30 V
  • Protection rating: IP65/IP67
  • Connection type: M12, 4-wire, QUICKON
PHOENIX CONTACT 2732392 ; IB L2 BOX 24 PWR IN DI 4/4 M12
