PHOENIX CONTACT 2725260 ; IBS PCI SC/I-T Used

PHOENIX CONTACT 2725260 ; IBS PCI SC/I-T
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2725260 ; IBS PCI SC/I-T
Condition:
Used
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

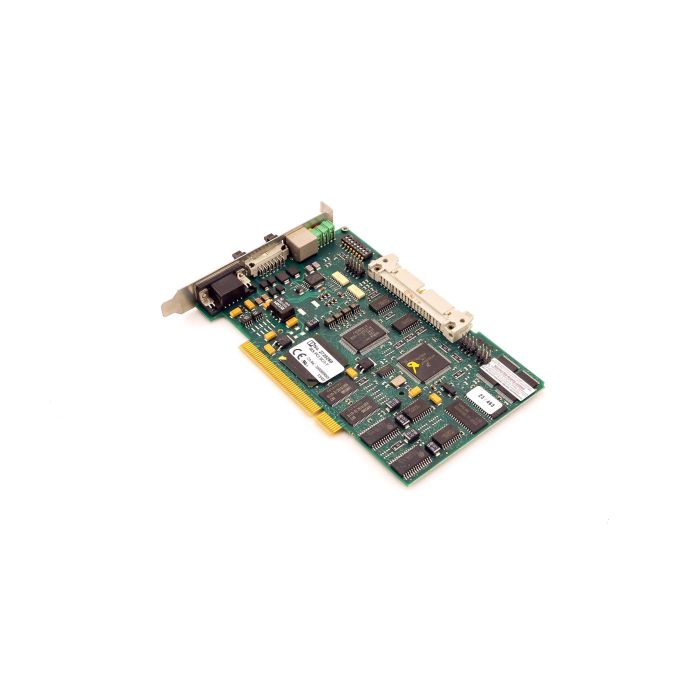

The Phoenix Contact IBS PCI SC/I-T is a PCI master control card with galvanic isolation for industrial PCs, delivering reliable INTERBUS fieldbus communication in machine and plant automation. Designed as a short 1-slot plug-in board, it provides robust diagnostics via LED status indicators and seamless Plug-and-Play integration.

As an INTERBUS master, the card handles up to 8,192 bits of process data and up to 126 stations over copper media at 500 kbit/s to 2 Mbit/s. It offers 16 bytes I/O, 6 digital inputs (IEC 61131-2 type 1) and 2 digital outputs at 24 V DC (0.5 A/channel) via a 14-pin FLK connector. Power is supplied with 5 V DC through the PCI bus (typ. 0.7 A, max. 3.5 W dissipation), and the unit operates from 0 to 55°C in IP20 environments, supporting engineering with CMD and DIAG+ tools.

This PCI control solution enhances throughput, simplifies commissioning, and ensures stable fieldbus connectivity for OEMs and system integrators, while its galvanic isolation safeguards connected equipment; for added confidence in long-term operation, it is backed by a 1-year warranty.

  • Brand: Phoenix Contact
  • Series: IBS PCI
  • Model: IBS PCI SC/I-T (2725260)
  • Fieldbus/Master: INTERBUS Master
  • Data rate: 500 kbit/s to 2 Mbit/s
  • Supply voltage: 5 V DC via PCI bus
  • Digital I/O: 6 DI (IEC 61131-2), 2 DO 24 V DC (0.5 A/channel)
  • Connection type: 14-pin FLK connector
PHOENIX CONTACT 2725260 ; IBS PCI SC/I-T
