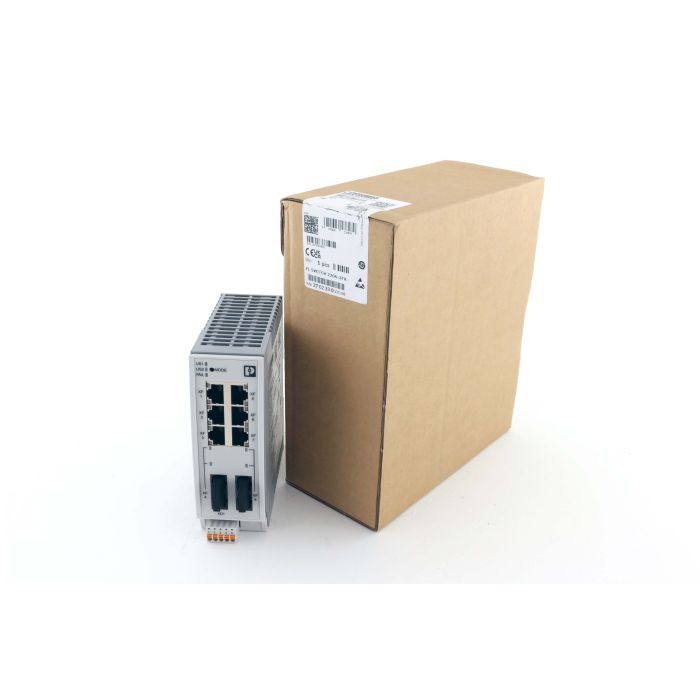

The Phoenix Contact FL SWITCH 2206-2FX is a managed industrial Ethernet switch from the 2000 series, designed for reliable network communication in automation systems, process installations and machine-building environments. With six RJ45 ports and two SC multimode fiber-optic ports, this switch supports flexible copper and fiber network architectures for robust PROFINET and Industrial Ethernet applications.

This managed switch provides 10/100 Mbit/s Ethernet communication, 100 Mbit/s full-duplex fiber transmission and Store-and-Forward switching in accordance with IEEE 802.3. Functions such as web-based management via HTTP/HTTPS, MRP redundancy, Quality of Service with eight priority classes, DHCP client support, RMON history and PROFINET Conformance Class B make it suitable for demanding industrial network segmentation, diagnostics and high-availability communication.

Thanks to its extended operating temperature range, IP20 protection and rail-mountable book-style housing, the FL SWITCH 2206-2FX is well suited for control cabinets in harsh industrial environments, and for added purchasing confidence this product comes with a 1-year warranty.

• Brand: Phoenix Contact
• Series: Managed Switch 2000
• Model: FL SWITCH 2206-2FX
• Ports: 6 x RJ45 10/100 Mbit/s and 2 x SC multimode 100 Mbit/s
• Supply voltage: 9 V DC to 57 V DC
• Protection rating: IP20
• Connection type: Push-in spring connection via COMBICON
• Operating temperature: -40 °C to 70 °C
