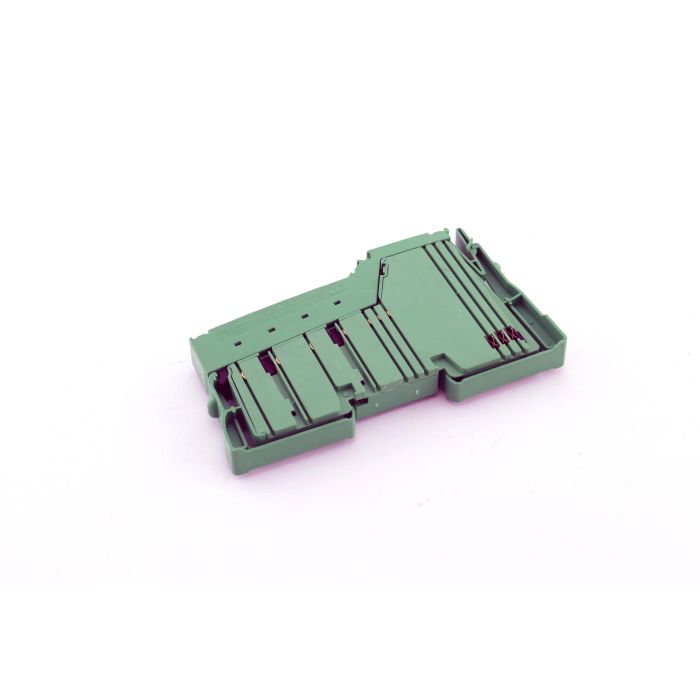

The Phoenix Contact IB IL 24 DI8/HD-PAC Inline digital input terminal adds eight 24 V DC channels to your modular PLC I/O, delivering precise, noise-immune signal acquisition in compact control cabinets. Engineered for machine building, process equipment, and infrastructure automation, it integrates seamlessly into Phoenix Contact Inline stations for scalable, high-availability control architectures.

Each input complies with EN 61131-2 types 1 and 3, with a typical 2.4 mA input current, 1 ms switching times, and robust thresholds (0: -3…5 V, 1: 11…30 V) for dependable detection. The module is supplied by 24 V DC via the potential distributor, communicates over the Inline local bus at 500 kBit/s, and uses spring-cage 1-wire terminations for fast, vibration-resistant wiring. With IP20 protection, DIN-rail mounting, and an operating range of -25…55 °C, it meets Overvoltage Category II and Pollution Degree 2 requirements for industrial environments.

Delivered with Inline contacts and coding field for straightforward commissioning, this 8-channel DI module shortens installation time and secures long-term reliability in distributed I/O systems, supported by a 1-year warranty that safeguards your project lifecycle.

• Brand: Phoenix Contact
• Series: Inline
• Model: IB IL 24 DI8/HD-PAC
• Inputs: 8 digital channels
• Input voltage: 24 V DC
• Local bus data rate: 500 kBit/s
• Connection type: Spring-cage, 1-wire
• Protection rating: IP20
