heroicons/solid/check 10,000 Products in Stock
heroicons/solid/check Worldwide Delivery
heroicons/solid/check Order before 4 CET PM, shipped today
heroicons/solid/check New 12 months warranty

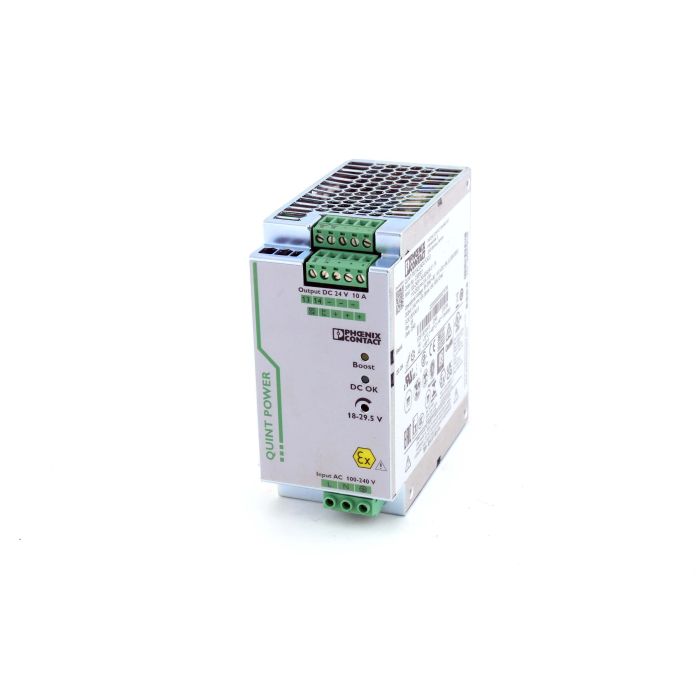

429027 (1)

PHOENIX CONTACT 2320911 ; QUINT-PS/1AC/24DC/10/CO POWER SUPPLY New

PHOENIX CONTACT 2320911 ; QUINT-PS/1AC/24DC/10/CO
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2320911 ; QUINT-PS/1AC/24DC/10/CO
Condition:
New
Logistics
Weight:
1.50kg
Country of Manufacture:
Taric-Code:
85044090

The Phoenix Contact QUINT POWER QUINT-PS/1AC/24DC/10/CO (2320911) is a robust industrial DIN rail power supply designed for dependable 24 V DC distribution in control cabinets, machine building, and process automation. Featuring SFB Technology (Selective Fuse Breaking) for rapid downstream fuse tripping and a protective conformal coating for harsh environments, it helps maximize system availability in demanding electrical installations.

Delivering 24 V DC at 10 A with an adjustable range of 18–29.5 V, this 240 W primary-switched power supply supports 1-phase AC/DC wide-range input, including 110–250 V DC operation. High efficiency and a typ. 36 ms hold-up time at 120 V AC ensure stable output during mains interruptions. Integrated transient surge protection (varistor and gas arrester), output overvoltage protection (≤ 32 V DC), and reinforced isolation (typ. 4 kV AC input/output) enhance safety and reliability. Parallel and series capability simplify redundancy and power scaling, while LED diagnostics, -40 to 70°C operating range with 2.5%/K derating above 60°C, IP20 metal housing, screw terminals, and NS 35 DIN rail mounting support fast, secure panel integration.

Built for high uptime and low maintenance in industrial power distribution, this coated QUINT POWER unit combines performance with ease of installation, and it is supplied with a 1-year warranty to support your project lifecycle from commissioning to operation.

  • Brand: Phoenix Contact
  • Series: QUINT POWER
  • Model: QUINT-PS/1AC/24DC/10/CO (2320911)
  • Output: 24 V DC / 10 A (adjustable 18–29.5 V DC)
  • Output power: 240 W
  • Input: 1-phase AC/DC; DC 110–250 V
  • Protection rating: IP20
  • Connection type: Screw connection, DIN rail NS 35
PHOENIX CONTACT 2320911 ; QUINT-PS/1AC/24DC/10/CO POWER SUPPLY, WITH PROTECTIVE COATING, PRIMARY-SWITCHED POWER SUPPLY UNIT QUINT POWER, SCREW CONNECTION, DIN RAIL MOUNTING, SFB TECHNOLOGY (SELECTIVE FUSE BREAKING), INPUT: 1-PHASE, OUTPUT: 24 V DC / 10 A, ADJUSTABLE FROM 18 V DC ... 29.5 V DC
