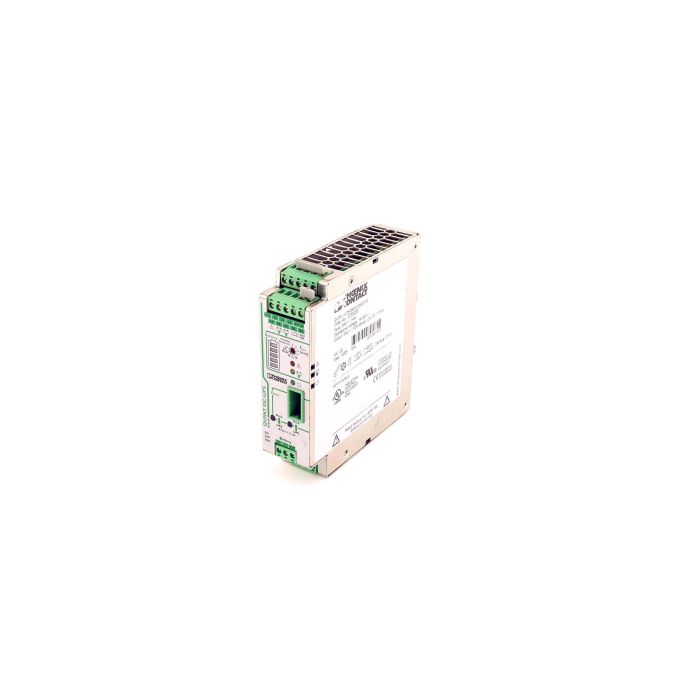

327044 (1)

PHOENIX CONTACT 2320225 ; QUINT-UPS/24DC/24DC/10 Used

PHOENIX CONTACT 2320225 ; QUINT-UPS/24DC/24DC/10
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2320225 ; QUINT-UPS/24DC/24DC/10
Condition:
Used
Logistics
Weight:
0.50kg
Country of Manufacture:
Taric-Code:
85389091

The Phoenix Contact QUINT DC-UPS 24DC/24DC/10 (2320225) ensures uninterrupted 24 V DC power for control cabinets in industrial automation, machine building and process engineering. This DIN rail uninterruptible power supply bridges outages and voltage dips, protecting PLCs, HMIs and field devices, while IQ Technology delivers intelligent battery management with clear, predictive status information.

Engineered for demanding DC systems, the unit accepts 18 to 30 V DC on the input and provides a regulated 24 V DC up to 10 A, supporting loads to 240 W with very high efficiency in line operation. Temperature-compensated charging between 24 and 29 V DC with adjustable charge current supports battery capacities from 1.3 to 140 Ah, while SFB Technology and comprehensive signaling via LEDs, IFS interface and a potential-free relay enable rapid diagnostics and integration. A robust metal IP20 housing, pluggable screw terminals and NS 35 rail mounting simplify installation and servicing, with operation from -25 to 70 °C and defined derating above 60 °C.

Whether deployed for redundant architectures or standalone buffering, this compact DC UPS boosts system availability and reduces maintenance overhead, and it includes a 1-year warranty to provide extra assurance in critical industrial applications.

  • Brand: Phoenix Contact
  • Series: QUINT DC-UPS
  • Model: QUINT-UPS/24DC/24DC/10 (2320225)
  • Input voltage range: 18 to 30 V DC
  • Output: 24 V DC / 10 A
  • Mounting: DIN rail NS 35 (EN 60715)
  • Protection rating: IP20
  • Connection type: Pluggable screw terminals
