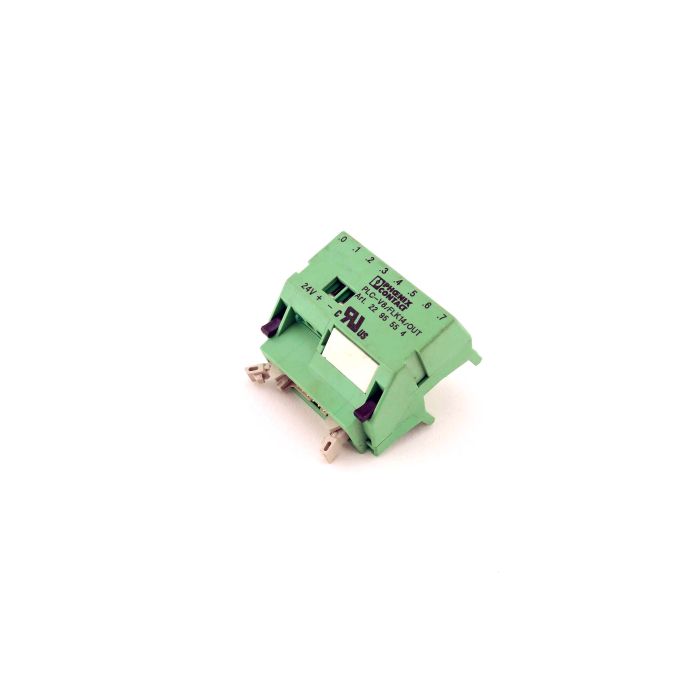

310612 (1)

PHOENIX CONTACT 2295554 ; PLC-V8/FLK14/OUT SYSTEM CONNECTION Used

PHOENIX CONTACT 2295554 ; PLC-V8/FLK14/OUT
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PHOENIX CONTACT
HAN:
2295554 ; PLC-V8/FLK14/OUT
Condition:
Used
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The Phoenix Contact PLC-V8/FLK14/OUT V8 adapter for 8 x PLC-INTERFACE (6.2 mm) delivers streamlined PLC system cabling for output cards. With an IDC/FLK 14-pin header and a plug-in connection to eight PLC-INTERFACE terminals, it consolidates channel wiring, reduces error potential, and accelerates commissioning in control panels and machine building.

Designed for dependable signal distribution, the module supports plus-switching control logic and operates from 18 to 33.6 V DC. Functional isolation with a nominal insulation voltage of 50 V and a per-channel load up to ≤ 1 A enhances robustness, while a green LED provides clear status indication. Interfaces include an IDC/FLK 1x14 header to IEC 60603-13, a 2-pin screw terminal, and a plug-in link to 8 x PLC-INTERFACE relay or solid-state modules. The housing meets UL 94 V0; the module is IP20 and achieves at least IP54 when installed in a protected enclosure. Rated for -40 to 70 °C and plug-on mounting without spacing, it aligns with EN IEC 60664-1 and EMC requirements.

Ideal for OEMs, panel builders, and maintenance teams standardizing on Phoenix Contact PLC-INTERFACE wiring, this interface module helps shorten build times and reduce downtime, and it is backed by a 1-year warranty for added assurance throughout the product lifecycle.

  • Brand: Phoenix Contact
  • Series: PLC-INTERFACE
  • Model: PLC-V8/FLK14/OUT (2295554)
  • Channels: 8
  • Control logic: Plus-switching
  • Supply voltage: 18 to 33.6 V DC
  • Connection type: IDC/FLK 14-pin header, 2-pin screw clamp, plug-in to 8x PLC-INTERFACE
  • Protection rating: IP20 module, ≥ IP54 installed
PHOENIX CONTACT 2295554 ; PLC-V8/FLK14/OUT V8 ADAPTER FOR 8 X PLC-INTERFACE (6.2 MM), CONTROLLER: PLC SYSTEM CABLING OF OUTPUT CARDS, CONNECTION 1: SCREW CONNECTION 1X, CONNECTION 2: IDC/FLK PIN STRIP 1X 14-POSITION, CONNECTION 3: PLUG-IN CONNECTION (CAN BE SNAPPED ONTO 8X PLC-INTERFACE TERMINALS), NUMBER OF CHANNELS: 8, CONTROL LOGIC: PLUSSCHALTEND
