428845 (1)

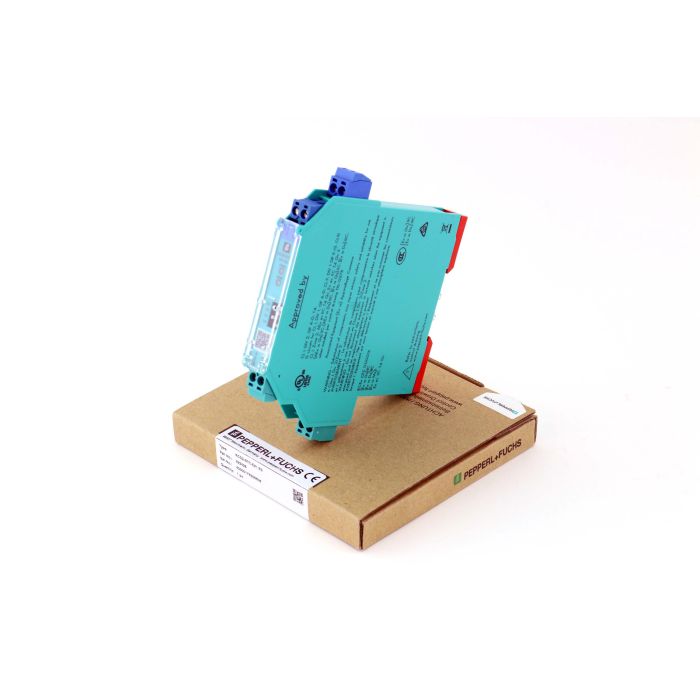

PEPPERL+FUCHS KCD2-STC-EX1.ES SMART TRANSMITTER POWER SUPPLY New

PEPPERL+FUCHS KCD2-STC-EX1.ES
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
PEPPERL+FUCHS
HAN:
KCD2-STC-EX1.ES
Condition:
New
Logistics
Weight:
0.20kg
Country of Manufacture:
Taric-Code:
85389091

The Pepperl+Fuchs KCD2-STC-EX1.ES smart transmitter power supply is a compact, 1-channel isolated barrier for reliable signal conditioning between hazardous-area field devices and safe-area control systems. Ideal for process automation and electrical engineering environments, it provides stable power and galvanic isolation for 2-wire smart transmitters while maintaining measurement integrity.

Designed for DIN-rail installations with Power Rail distribution, the KCD2-STC-EX1.ES accepts inputs from 2-wire smart transmitters and current sources and delivers either 4 to 20 mA or 1 to 5 V outputs in sink or source mode. Integrated line fault detection supports rapid diagnostics, and the 12.5 mm slim housing saves cabinet space. Engineered to meet up to SIL 3 per IEC/EN 61508, this barrier supports high availability in safety-related loops and demanding industrial applications.

With robust isolation and flexible output options, this module streamlines commissioning and lifecycle maintenance across distributed I/O and DCS architectures, helping standardize hazardous-area interfaces and reduce downtime, and it is supplied with a 1-year warranty for added assurance in continuous operation.

  • Brand: Pepperl+Fuchs
  • Model: KCD2-STC-EX1.ES
  • Channels: 1 channel
  • Supply voltage: 24 V DC via Power Rail
  • Input type: 2-wire smart transmitters and current sources
  • Output type: 4 to 20 mA or 1 to 5 V, sink or source
  • Safety rating: Up to SIL 3 (IEC/EN 61508)
  • Housing width: 12.5 mm
PEPPERL+FUCHS KCD2-STC-EX1.ES SMART TRANSMITTER POWER SUPPLY, 1-CHANNEL ISOLATED BARRIER, 24 V DC SUPPLY (POWER RAIL), INPUT FOR 2-WIRE SMART TRANSMITTERS AND CURRENT SOURCES, OUTPUT FOR 4 MA ... 20 MA OR 1 V ... 5 V, SINK OR SOURCE MODE, LINE FAULT DETECTION (LFD), HOUSING WIDTH 12.5 MM, UP TO SIL 3 ACC. TO IEC/EN 61508
