heroicons/solid/check 10K Products in Stock
heroicons/solid/check Worldwide Delivery
heroicons/solid/check Order before 4 PM CET, shipped today
heroicons/solid/check New 12 months warranty
429663 (1)

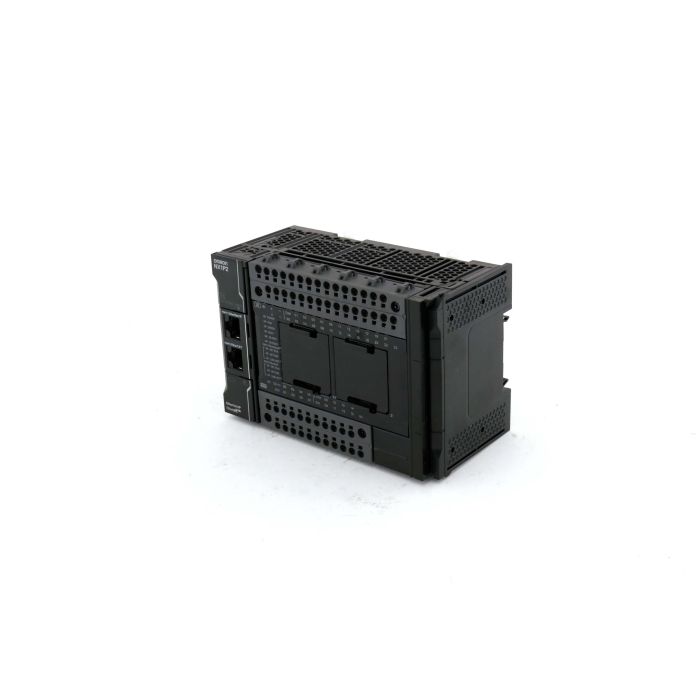

OMRON NX1P2-1040DT1 COMPACT CPU UNIT Used

OMRON NX1P2-1040DT1
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
OMRON
HAN:
NX1P2-1040DT1
Condition:
Used
Logistics
Weight:
0.60kg
Country of Manufacture:
Taric-Code:
85389091

Engineered for modern machine automation, the Omron NX1P2-1040DT1 Compact CPU Unit combines PLC control, motion capability and high-speed I/O in a small footprint. With an integrated EtherCAT Master and open Ethernet protocols, it enables OEMs and panel builders to standardize on a scalable platform that delivers dependable throughput and fast commissioning.

Delivering a 2 ms primary task cycle, the NX1P2-1040DT1 provides 1.5 MB program memory and 2 MB variables memory for complex logic and coordinated motion. It features 24 digital inputs (PNP/NPN) and 16 digital outputs (PNP) for flexible field wiring, and two Ethernet ports supporting EtherNet/IP and Ethernet TCP/IP. The EtherCAT Master streamlines multi-axis motion—up to 2 synchronous and 4 PTP axes—while serial options (RS-232C/RS-422/RS-485) ensure easy connection to legacy devices. Expand up to 8 local units and 16 remote I/O nodes, utilize the real-time clock for time-stamped operations, and power the system within a 20.4–28.8 V DC range for robust cabinet integration.

Ideal for compact packaging equipment, indexing systems and material handling cells, this controller reduces panel space, simplifies integration and supports predictive maintenance strategies, and it is backed by a 1-year warranty to safeguard your investment during critical operational periods.

  • Brand: Omron
  • Series: NX1P2
  • Model: NX1P2-1040DT1
  • Primary task cycle time: 2 ms
  • Digital I/O: 24 inputs (PNP/NPN), 16 outputs (PNP)
  • Communication ports: EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
  • Serial options: RS-232C, RS-422, RS-485
  • Supply voltage: 20.4–28.8 V DC
OMRON NX1P2-1040DT1 COMPACT CPU UNIT NX1P2 SERIES
