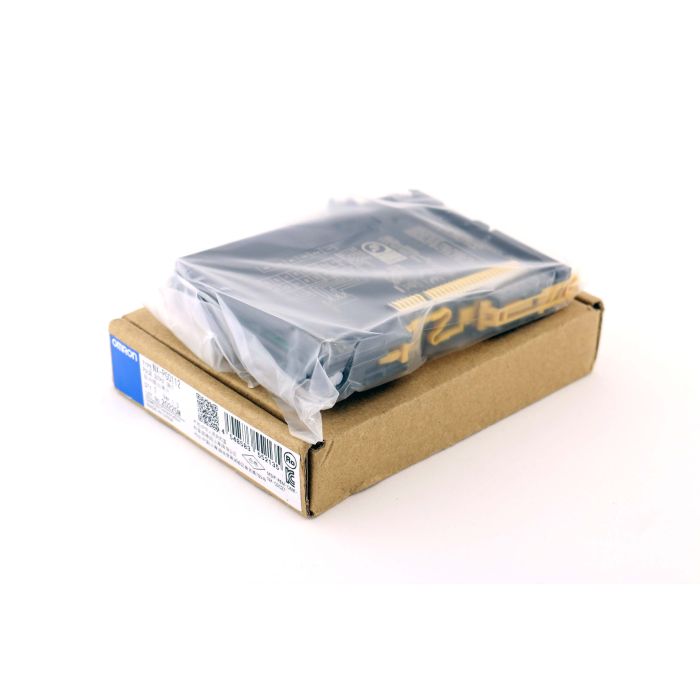

428572 (1)

OMRON NX-PG0112 PULSE OUTPUT UNIT New

OMRON NX-PG0112
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
OMRON
HAN:
NX-PG0112
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The Omron NX-PG0112 Pulse Output Unit delivers precise high-speed pulse train control for stepper and servo drives within the Omron NX I/O platform. Built for machine builders and system integrators, it adds compact pulse output capability for positioning, indexing and feeder applications, with a slim 12 mm footprint and push-in wiring to simplify cabinet layout and installation.

This module provides one NPN voltage pulse channel up to 500 kHz, configurable for forward/reverse pulse trains or pulse + direction signals to match common driver interfaces. Deterministic performance is supported by synchronous, task period prioritized signal processing inside Sysmac control tasks over the NX I/O Bus. A detachable terminal block accelerates maintenance, and the IP20 construction is intended for protected control panels. The unit is a dedicated pulse generator with no encoder inputs and is neither an IO-Link master nor a safety module.

Whether you are upgrading an axis on a compact machine or adding a reliable pulse source to a PLC-based motion sequence, the NX-PG0112 helps you achieve repeatable results with minimal integration effort, complemented by a 1-year warranty for added assurance in demanding industrial environments.

  • Brand: Omron
  • Series: NX
  • Model: NX-PG0112
  • I/O system: NX I/O Bus
  • Output type: NPN voltage pulse
  • Pulse output channels: 1
  • Max. pulse output frequency: 500 kHz
  • Connection type: Push-in (screwless)
OMRON NX-PG0112 PULSE OUTPUT UNIT 1 X PULSE OUTPUT, FORWARD/REVERSE DIRECTION PULSES OR PULSE + DIRECTION SIGNAL, NPN, SCREWLESS PUSH-IN CONNECTOR, 12 MM WIDE
